Center Triple-Payload Mount - FC30

Triple-Payload Mount for FlyCart 30

Center Triple-Payload Mount - FC30

Built for the DJI FlyCart 30, the center triple-payload mount carries up to three ET4 four-stage droppers at once. That gives 12 release stages and up to 120kg of load, with DJI Pilot 2 controlling each position and detecting what is mounted.

  1. Three Payloads at Once

    Up to three payload devices can be mounted on the carrier at the same time.

  2. 12 Stages, 120kg Load

    Three droppers give 12 release stages and a maximum load of 120kg.

  3. Independent DJI Pilot 2 Control

    DJI Pilot 2 addresses each mounted position independently for separate release control.

  4. Quick-Release Direct Mount

    A screw quick-release connects straight to the aircraft, so fitting takes seconds.

Applications

Logistics Transport
Logistics Transport
Emergency Rescue
Emergency Rescue

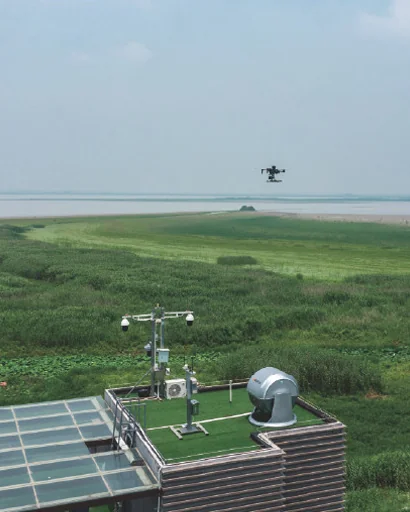

Agricultural Spraying
Agricultural Spraying
Industrial Inspection
Industrial Inspection

Technical Specifications

IP Rating
IP4X
Operating Temperature
-10°C to 50°C
Storage Temperature
Operational temperature -20 °C to 60 °C
Maximum Power Consumption
≤10W
Electrical Interface
DJI E-Port Lite
Compatible with
DJI FlyCart 30
Number of throwers that can be mounted
3
Placement Function
Single point delivery, one-click full projection
Control method
DJI Pilot 2
Installation Method
Screw quick release
Dimensions
362 × 95 × 30 mm
Weight
350g
Max Load
120kg
