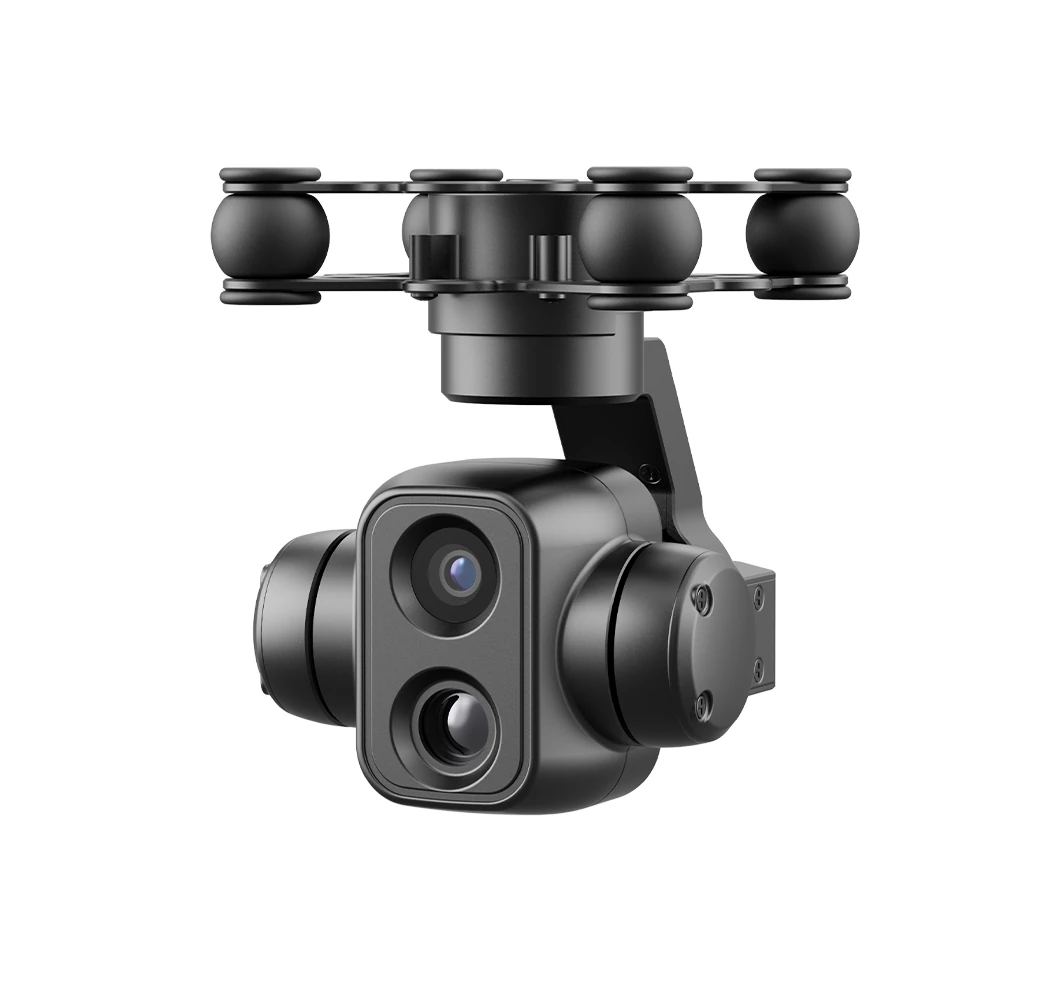

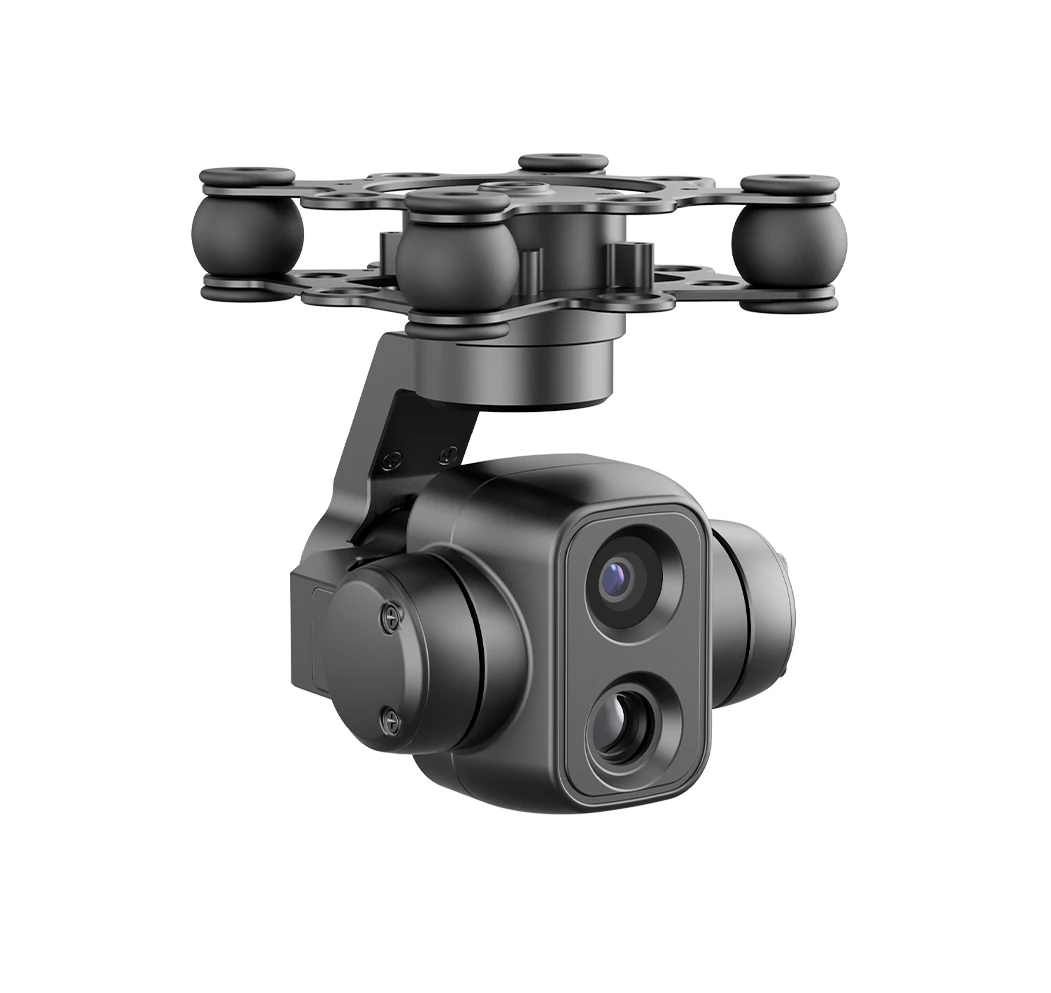

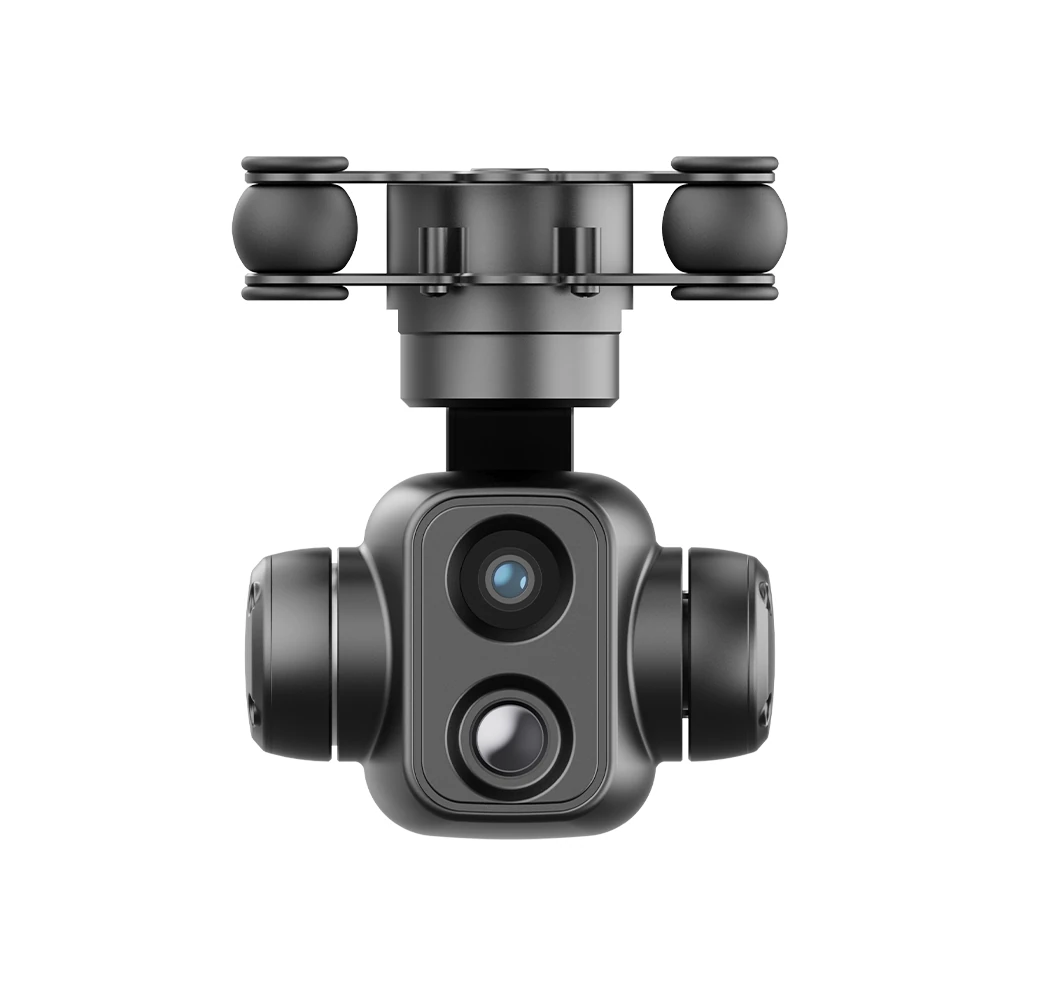

Micro 3-Axis Dual-Sensor Gimbal - PUTD095

Name: Micro 3-Axis Dual-Sensor Gimbal - PUTD095
Brand: Puyu Drone
Availability: PreOrder

Micro Dual-Sensor Stabilized Gimbal

The PUTD095 pairs a 50MP visible camera with a long-wave uncooled infrared sensor on a three-axis stabilized platform. Stabilization holds within 0.02 degrees, and the 104 g gimbal recognises adult targets past 400m by day and 90m at night.

Three-Axis Stabilization
Three-axis gyro stabilization holds the image within 0.02 degrees of drift.
50MP and Infrared Fusion
A 50MP visible sensor and a long-wave infrared sensor work together.
104 g Lightweight Gimbal
The three-axis gimbal weighs 104g, suiting small unmanned aircraft.
Day and Night Recognition
Recognition reaches past 400m in daylight and past 90m at night.

Applications

Technical Specifications

Azimuth Range: -110° to +110°
Pitch Range: -90° to +30°
Gimbal Weight: 104g ± 5g
Gimbal Dimensions: 58.0 x 57.0 x 79.0 mm
Stabilization Accuracy: ≤0.02° (preview 0.1°Hz)
Operating Temperature: -20°C to +55°C
Storage Temperature: -45°C to +60°C
Power Supply: DC10.8V to DC26.4V @ 3A
Power Consumption: ≤10W steady

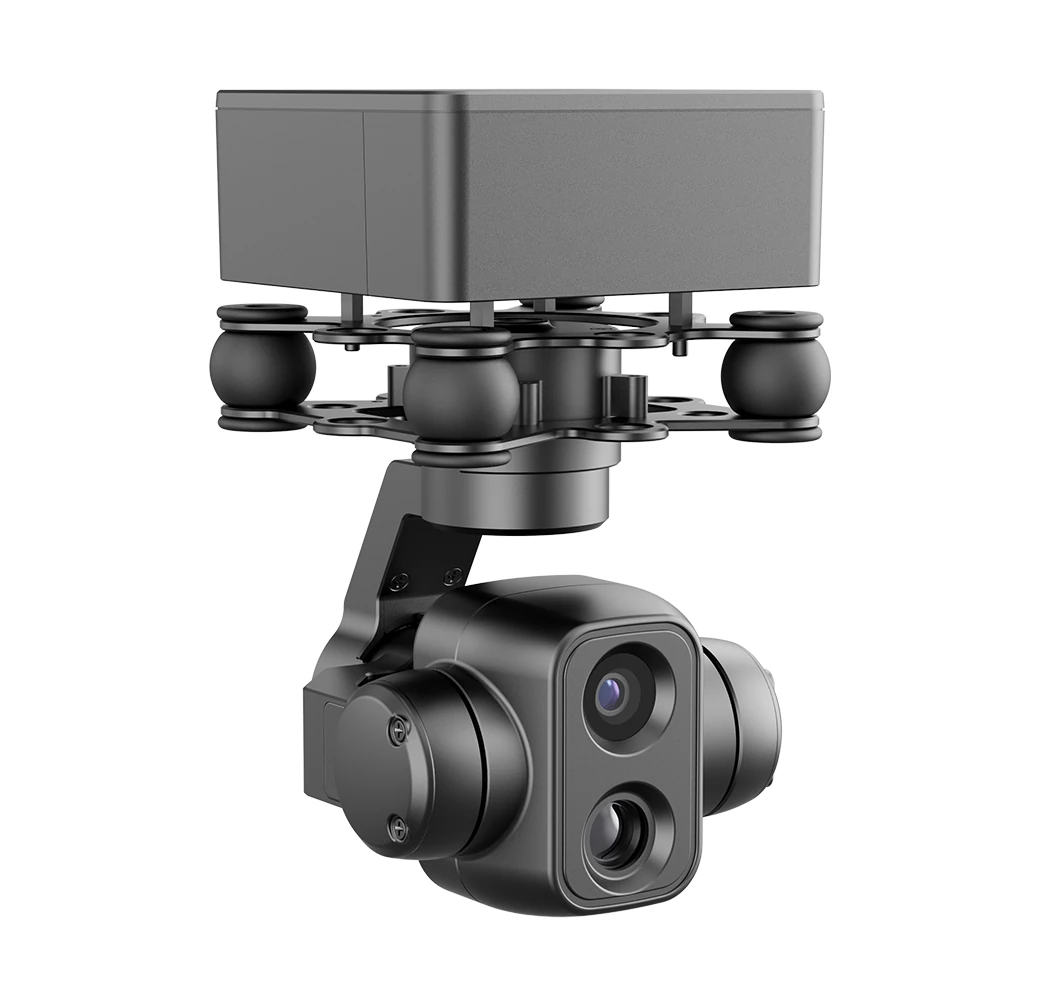

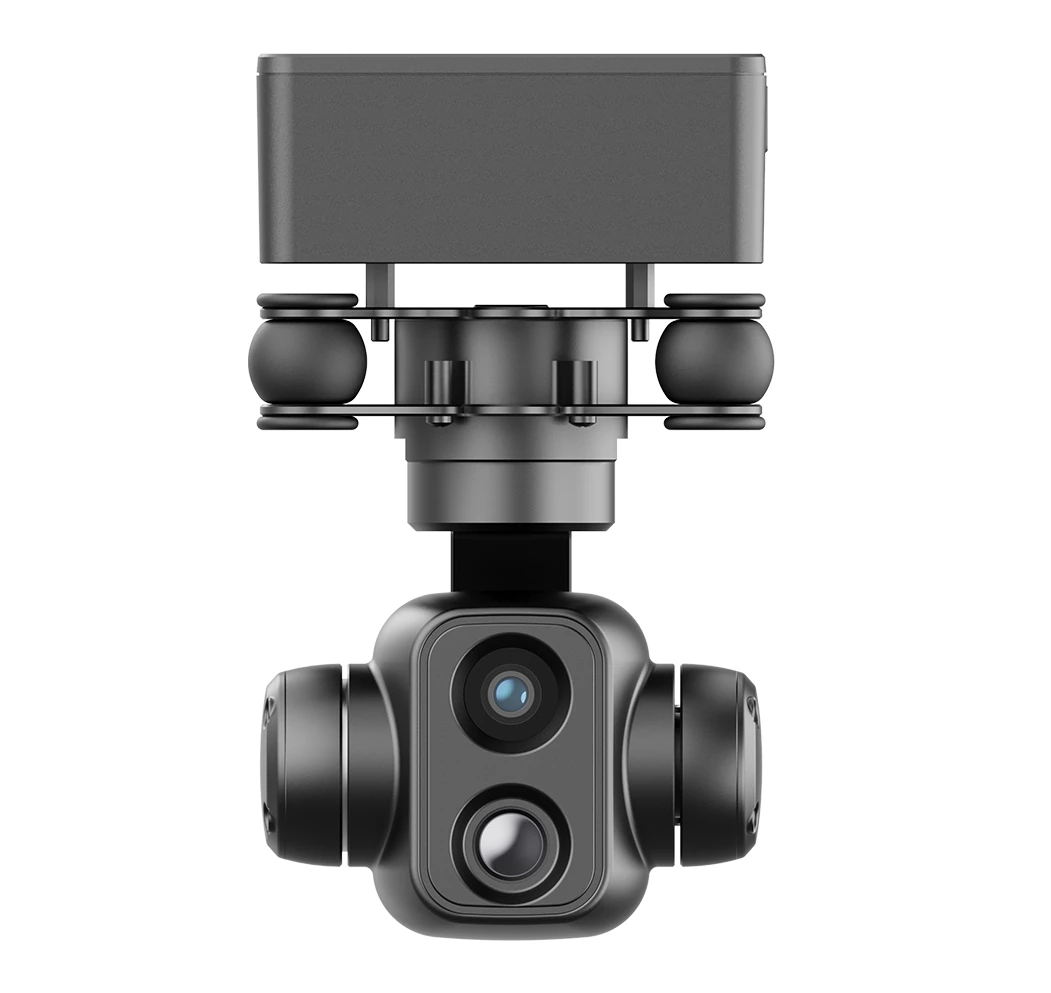

Control Box Dimensions: 59.0 x 55.0 x 24.0 mm
Control Interface: TTL serial, network, SBUS
Visible-Light Sensor: 1/2.5" CMOS, 50 MP effective
Visible FOV: 58.5°(H) x 35.5°(V) (±5%,1080P)
Lens Focal Length: 4.7mm
Video Resolution: 8K 4K 1920×1080
Photo Resolution: 4K 50fps, 1920x1080 50fps
Detector Band: 8-14μm LWIR
IR Resolution: 384×288
IR FOV: 24.8°(H) x 18.7°(V) (±5%,1080P)
IR Lens Focal Length: 7mm
Detector Frame Rate: 384×288 @50fps
NETD: ≤50mK (@25°C F#1.0)
Video Output: HDMI / network / coaxial
Video Codec: H.264 / H.265
Video Stream: 2M / 4M
Servo Weight: 42g ± 2g
Storage: Micro SD card
Recognition Range (Day): >400 m on adult target (daytime visibility ≥8 km, humidity ≤60%)
Recognition Range (Night): >90 m on adult target (night visibility ≥8 km, humidity ≤60%, ΔT ≥5K)
