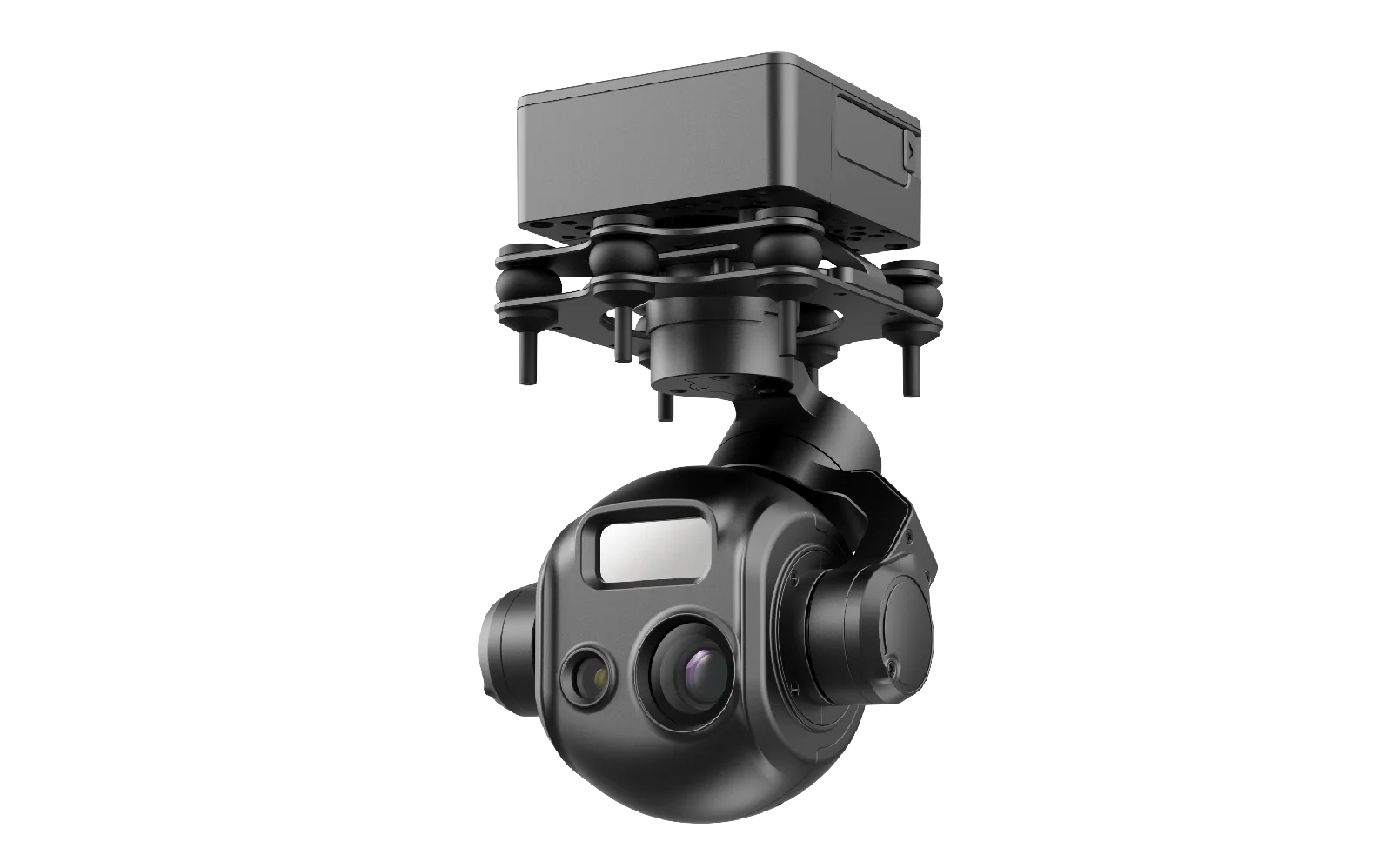

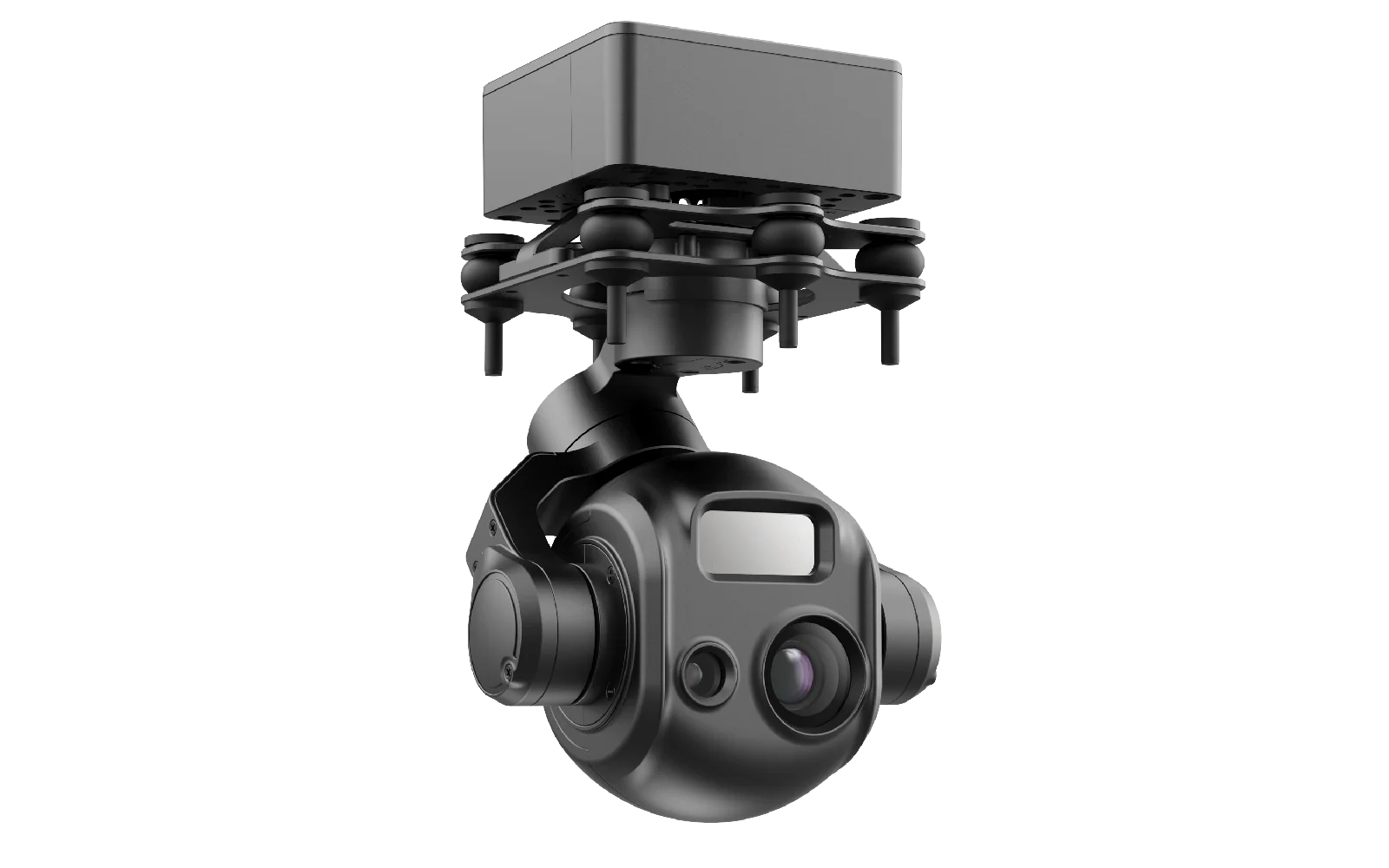

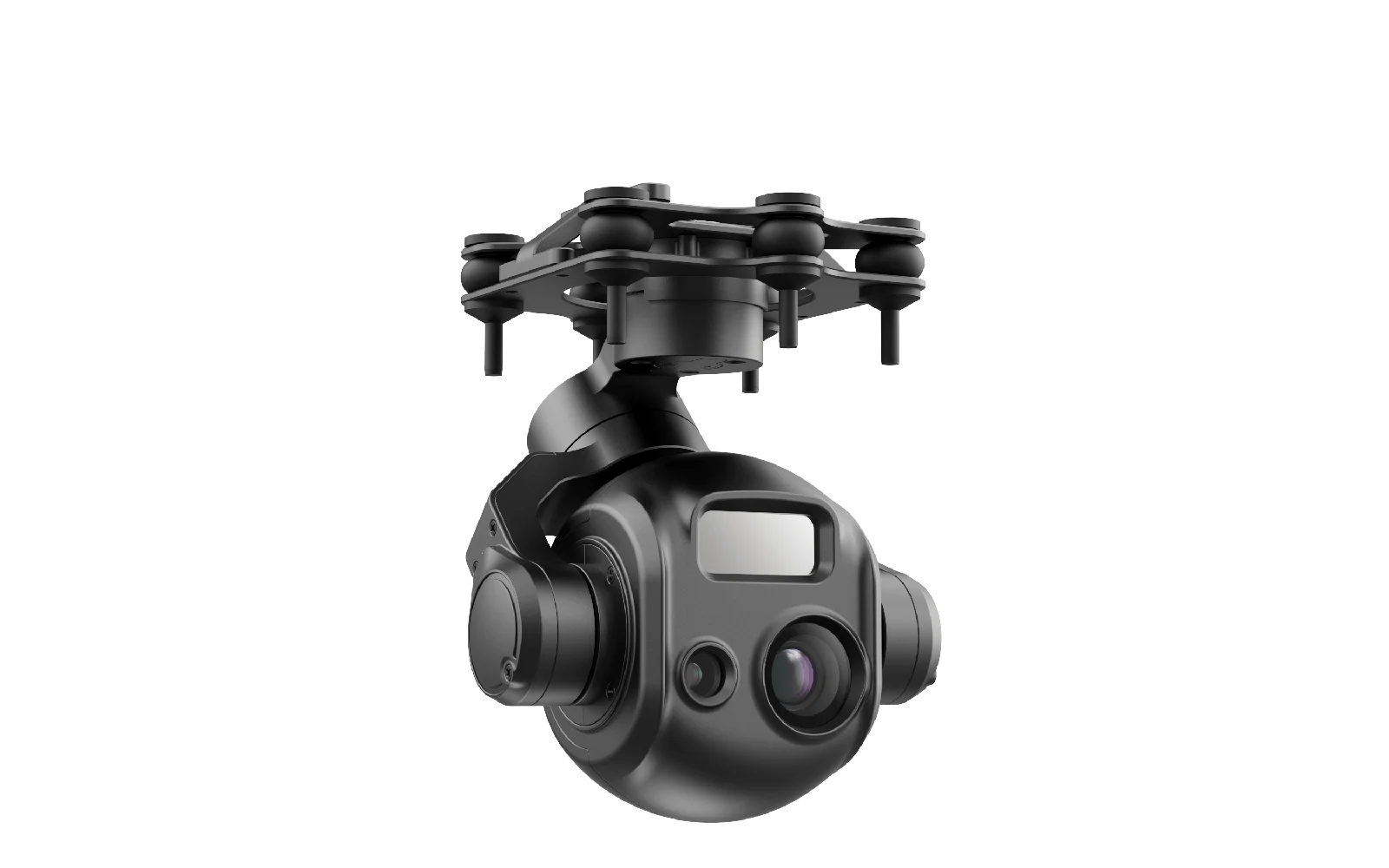

Micro 3-Axis Tri-Sensor Gimbal - PUTG60C
Micro Tri-Sensor Ranging Gimbal
The PUTG60C adds a 905nm laser rangefinder to a 13MP wide camera and a 2MP starlight telephoto camera. Ranging runs from 10m to 1200m within 1m, low-light recognition passes 600m, and the gimbal mounts in about three minutes.
1200m Laser Ranging
The 905nm rangefinder reads distance from 10m to 1200m within 1m.
600m Low-Light Recognition
Starlight telephoto imaging holds recognition past 600m in low light.
Three Minute Mounting
A standard quick-release interface gets the gimbal on the aircraft in about three minutes.
Seeing and Measuring
Video and distance come back from the same pass, so one flight both finds and measures.
Applications
Technical Specifications
- Gimbal / Total Weight
- 202±5g / 244g
- Gimbal Dimensions
- 87 x 72 x 109 mm
- Wide Camera
- 13MP, 3.5mm, 63.5° x 38.5°
- Starlight Telephoto
- 2MP, 16mm
- Laser Rangefinder
- 905nm, 10-1200m, ±1m
- Daytime Recognition
- >350m
- Low-Light Recognition
- >600m
