T40 Searchlight
Lightweight Searchlight for Matrice 4

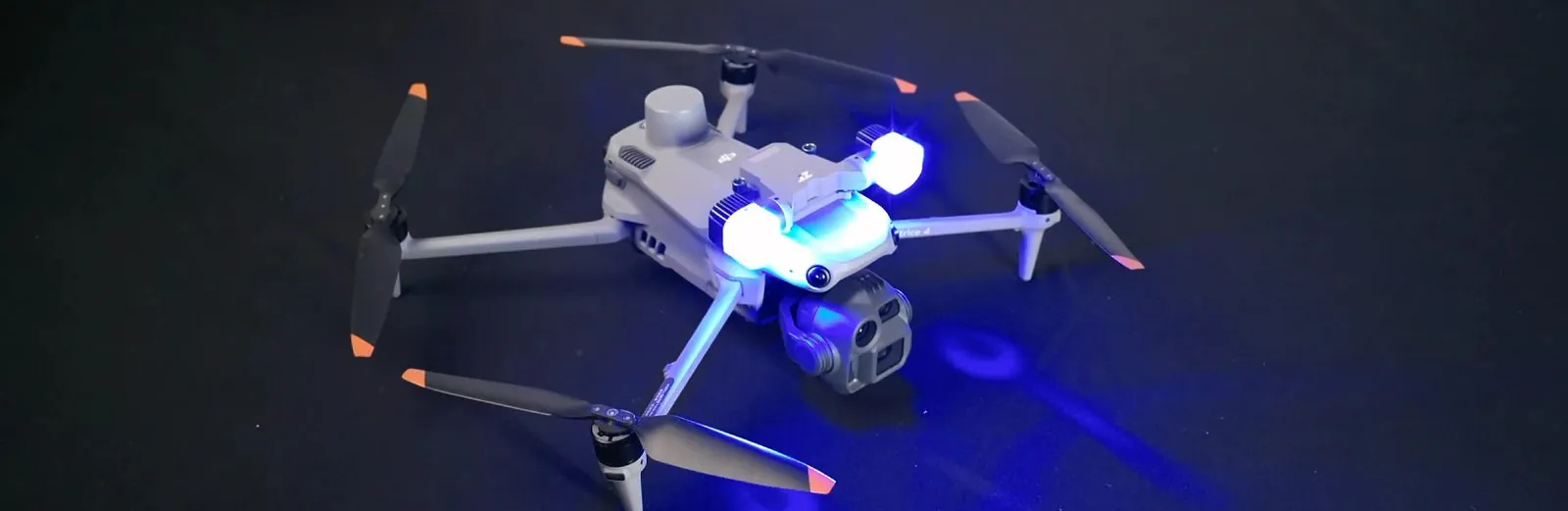

A lightweight one-piece design at 95.6 g, the T40 pairs a brushless self-stabilizing gimbal with six RGB LEDs for DJI Matrice 4E, 4T, 4D and 4TD aircraft. The 14 degree spotlight reaches 150 m, and brightness, strobe and multi-color warning modes switch as needed.
14 Degree Spotlight
One-touch switching drives a 14 degree spotlight with effective lighting distance past 150 m.
Gimbal Camera Linkage
Gimbal angle adjusts from -90 to +35 degrees and links with the camera for steady aim.
RGB Multi-Color Strobe
Multiple RGB LEDs strobe in red, green, blue, yellow and white with custom color and rate.
Lightweight One-Piece Body
At 95.6 g the one-piece housing keeps payload weight low on Matrice 4 aircraft.
Applications
Technical Specifications
- IP Rating
- IP54
- Operating Temperature
- -10°C to 50°C
- Storage Temperature
- -20°C to 60°C
- Maximum Power Consumption
- 40W
- Electrical Interface
- DJI SDK
- Installation Method
- Screw quick release
- Compatible with
- DJl Matrice 4E\4T、DJl Matrice 4D\4TD
- Operation Control
- DJI Pilot 2
- Dimensions
- 146 x 72 x30 mm
- Weight
- 95.6g
- Blink Color
- Red, Green, Blue, Yellow, White
- Key Features
- Configure a controllable gimbal that can be linked with the camera gimbal
- Illumination mode
- Combined Lighting
- Illumination Angle
- 14°
- Lighting distance
- 50m、100m、150m
- Lighting area
- 113m²、471m²、1063m²
- Center illumination
- 30Lux、7Lux、3Lux
