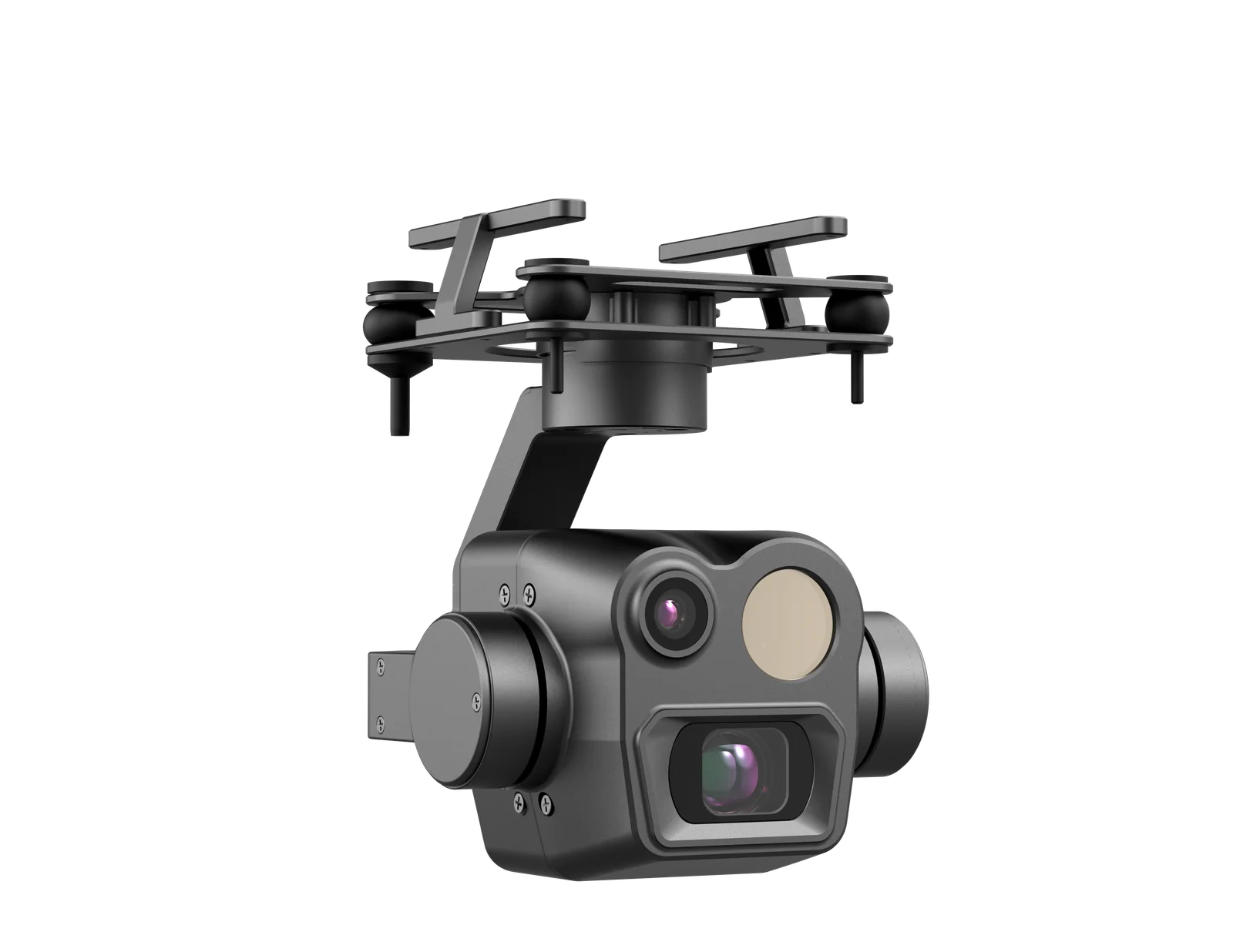

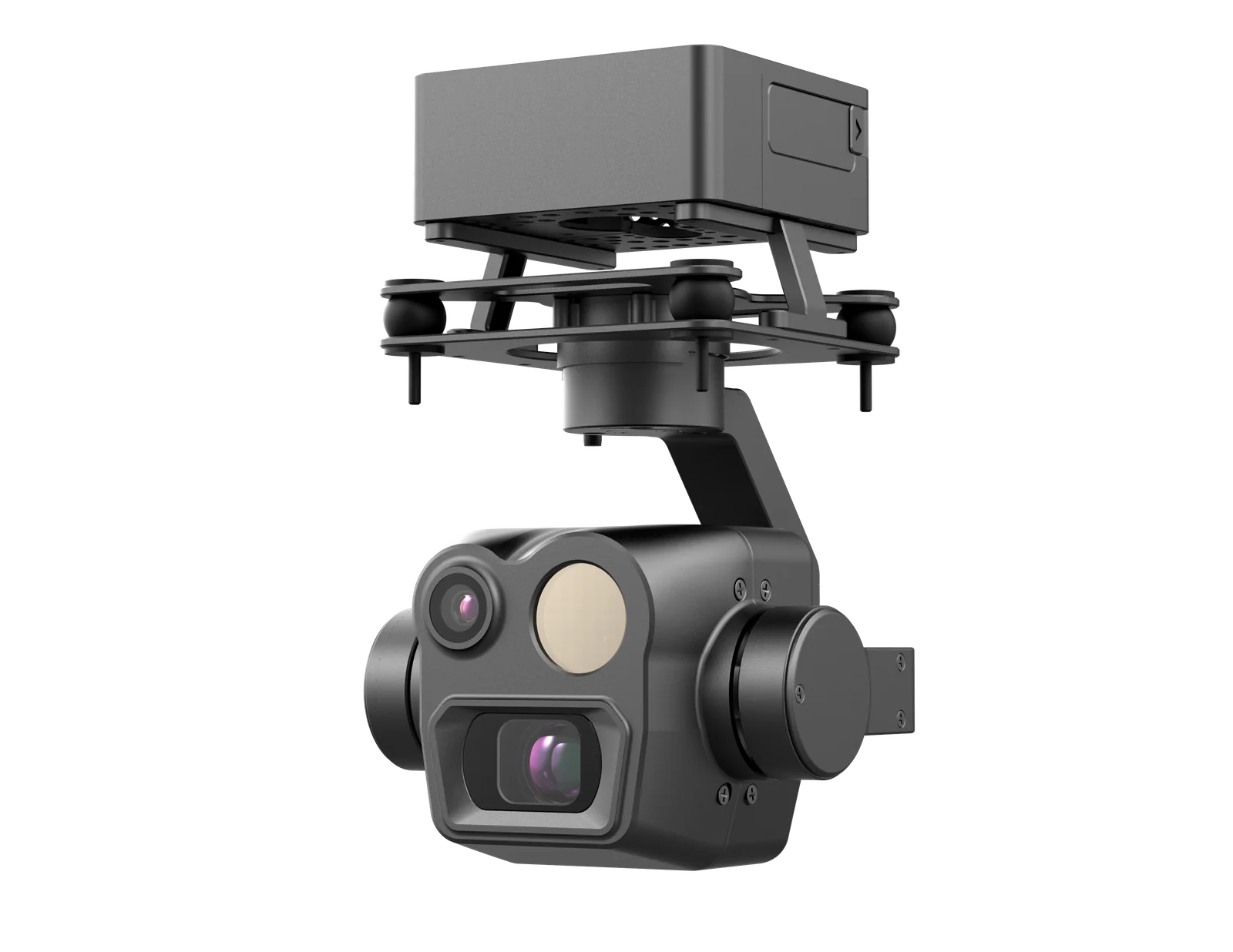

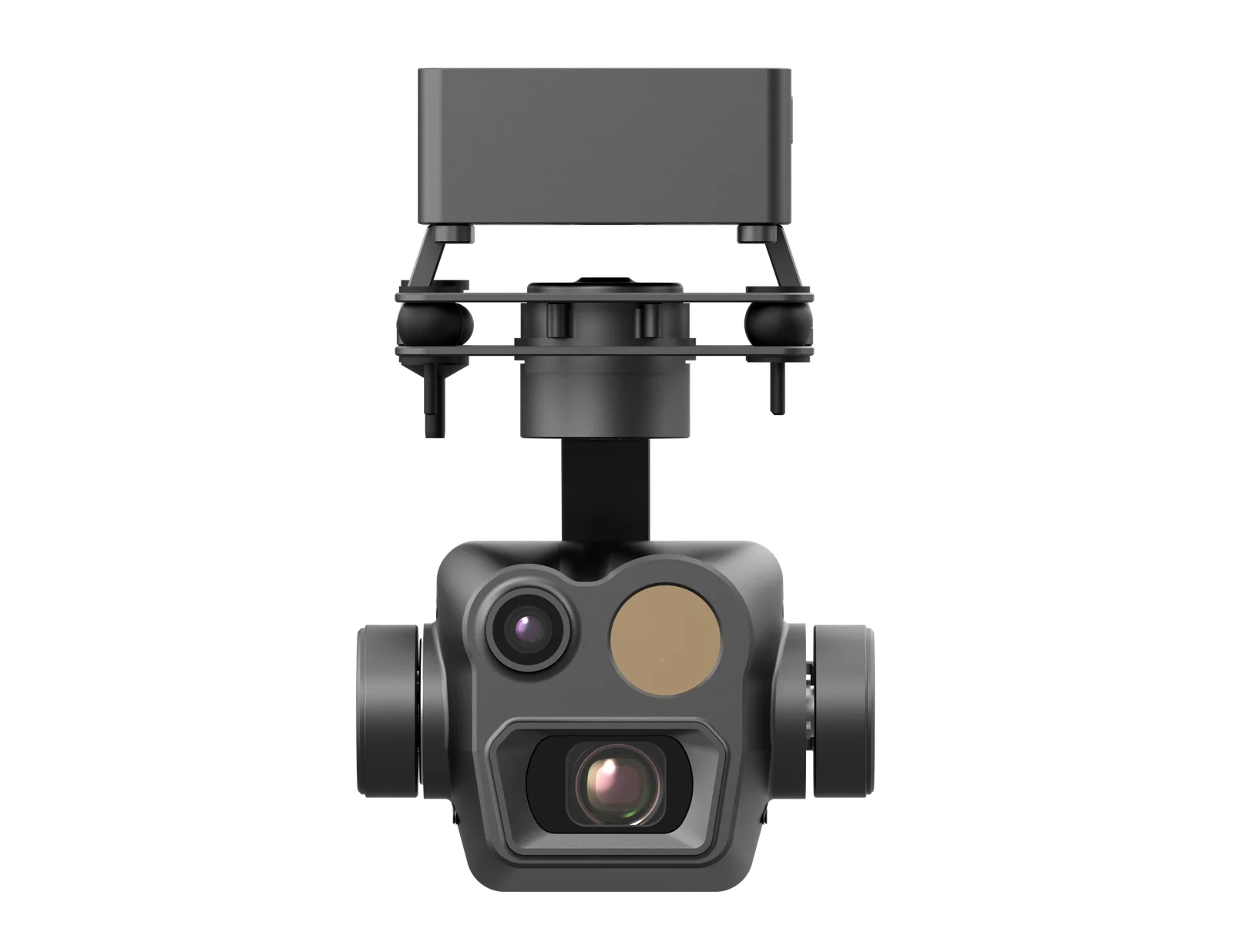

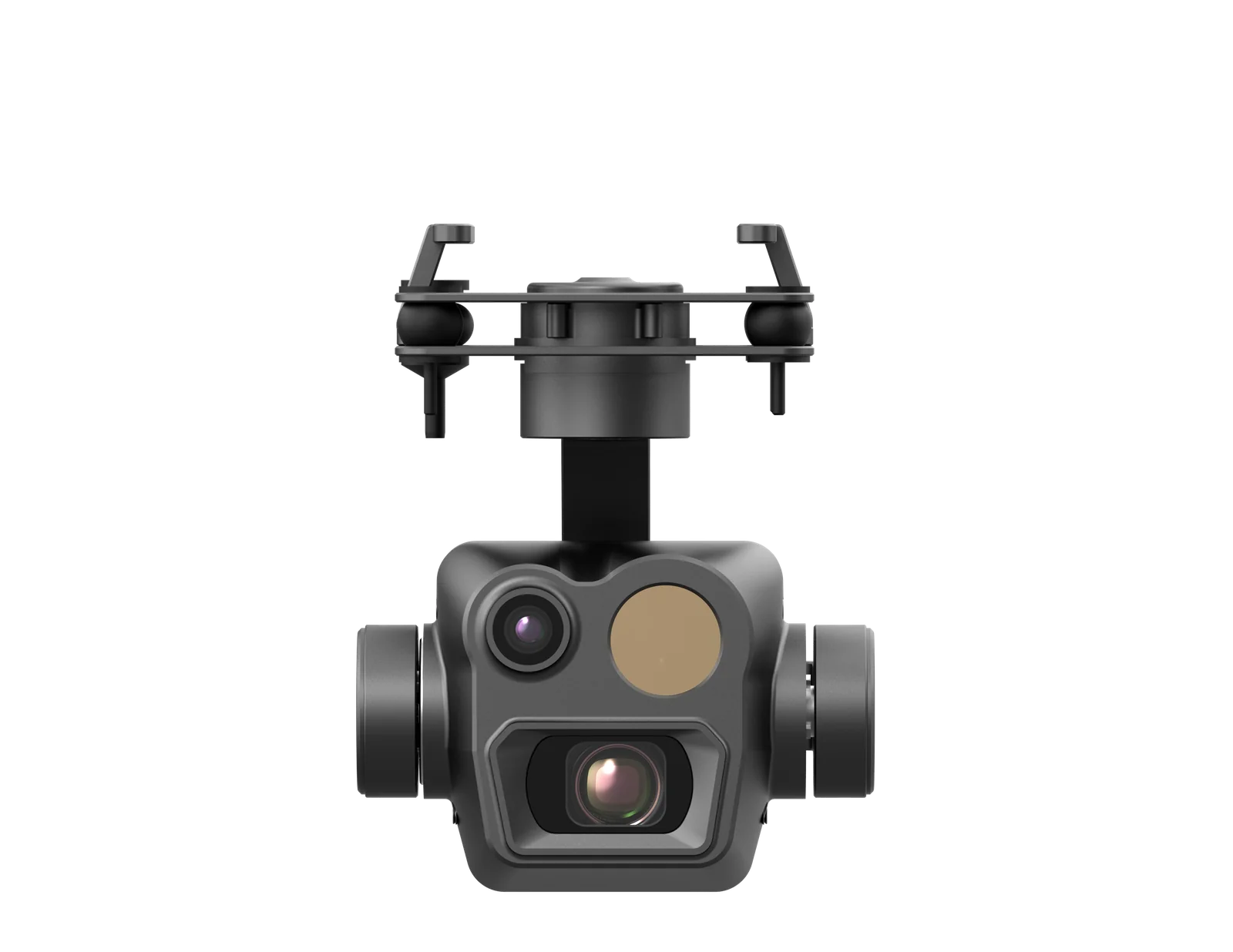

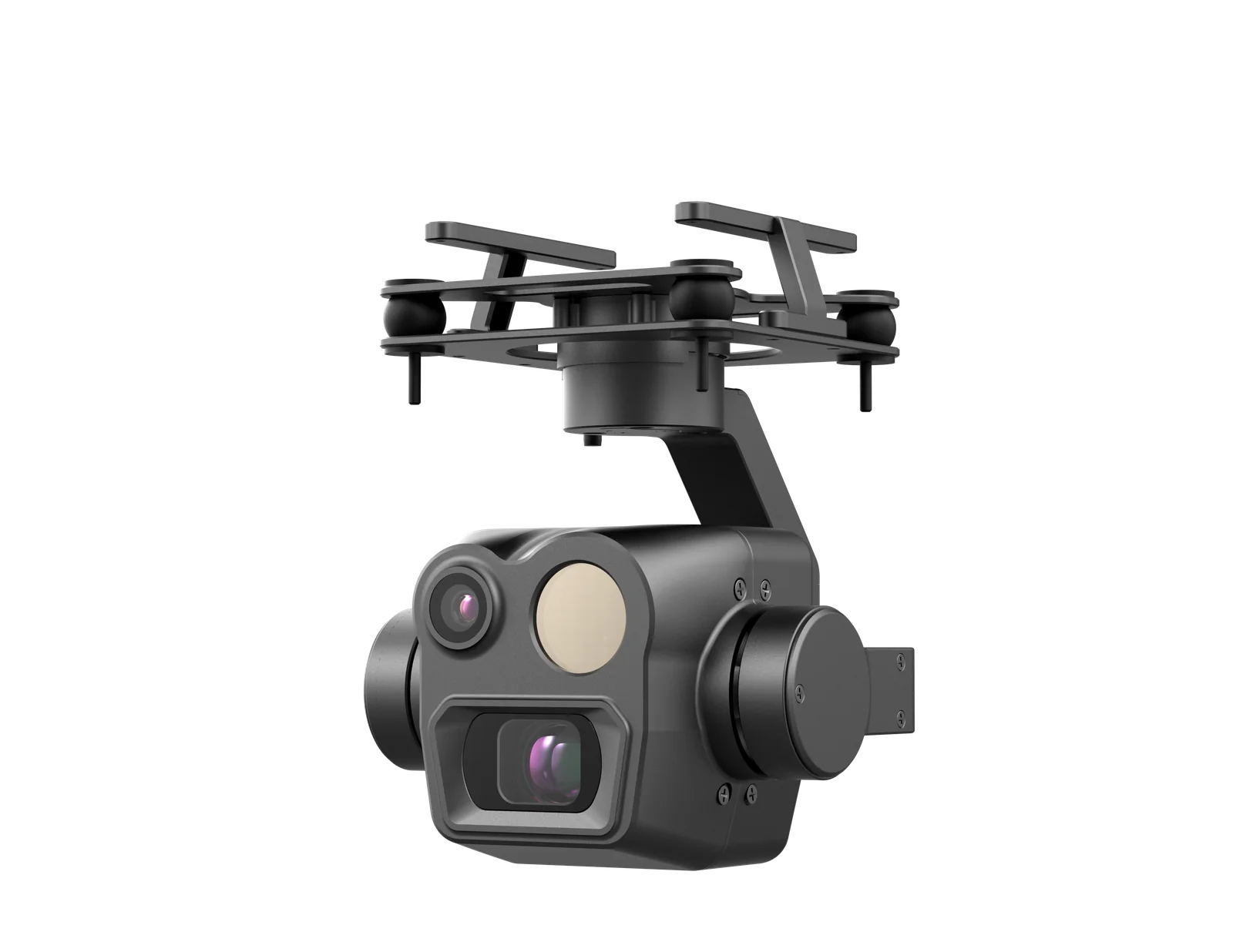

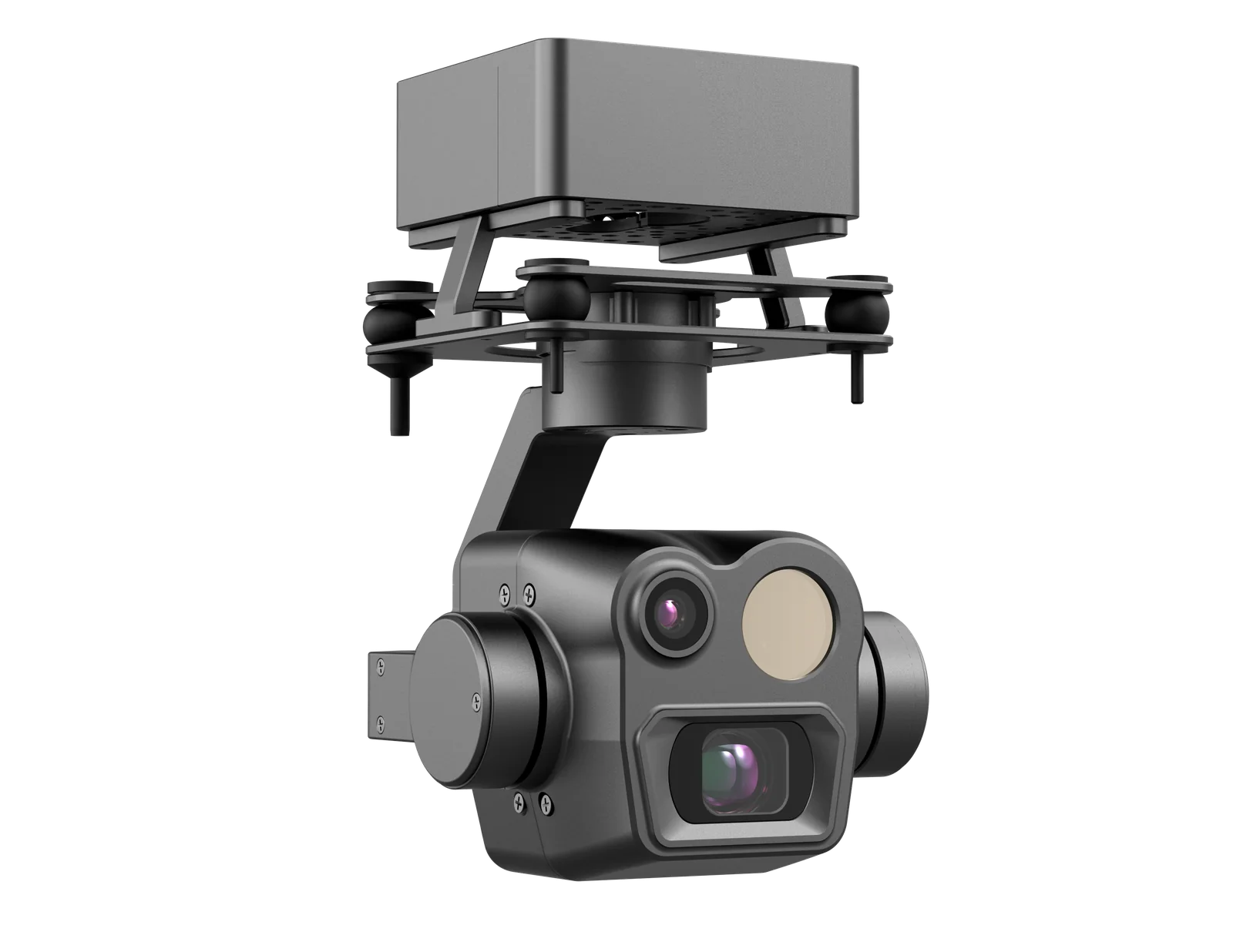

Micro 3-Axis Tri-Sensor Gimbal - PUTT225
Micro Tri-Sensor Ranging Gimbal

The PUTT225 pairs a 50MP wide camera and a 48MP zoom camera with a 905nm laser rangefinder. Hybrid zoom reaches 120X with daytime recognition past 1500m, ranging covers 10m to 700m, and total weight is 267g.
120X Hybrid Zoom
Optical and electronic zoom together reach 120X, holding daytime recognition past 1500m.
700m Laser Ranging
The 905nm rangefinder reads from 10m to 700m with accuracy within 1m.
267g, Plus 18 Percent Endurance
Total weight lands at 267g, which raises available flight time by about 18 percent.
Wide, Zoom and Range
Coverage, magnification and distance reading work as one system on every pass.

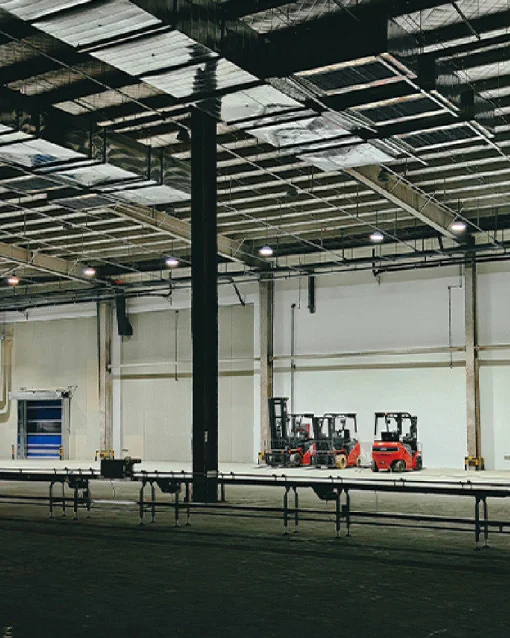

Applications





Technical Specifications
- Gimbal / Total Weight
- 225±5g / 267g
- Gimbal Dimensions
- 83 x 92 x 100 mm
- Wide Camera
- 50MP, 4.7mm, 59.5° x 35.5°
- Zoom Camera
- 48MP, 15.3-49.7mm
- Hybrid Zoom
- 120X (8X electronic zoom)
- Laser Rangefinder
- 905nm, 10-700m, ±1m
- Daytime Recognition
- >1500m
Related Products

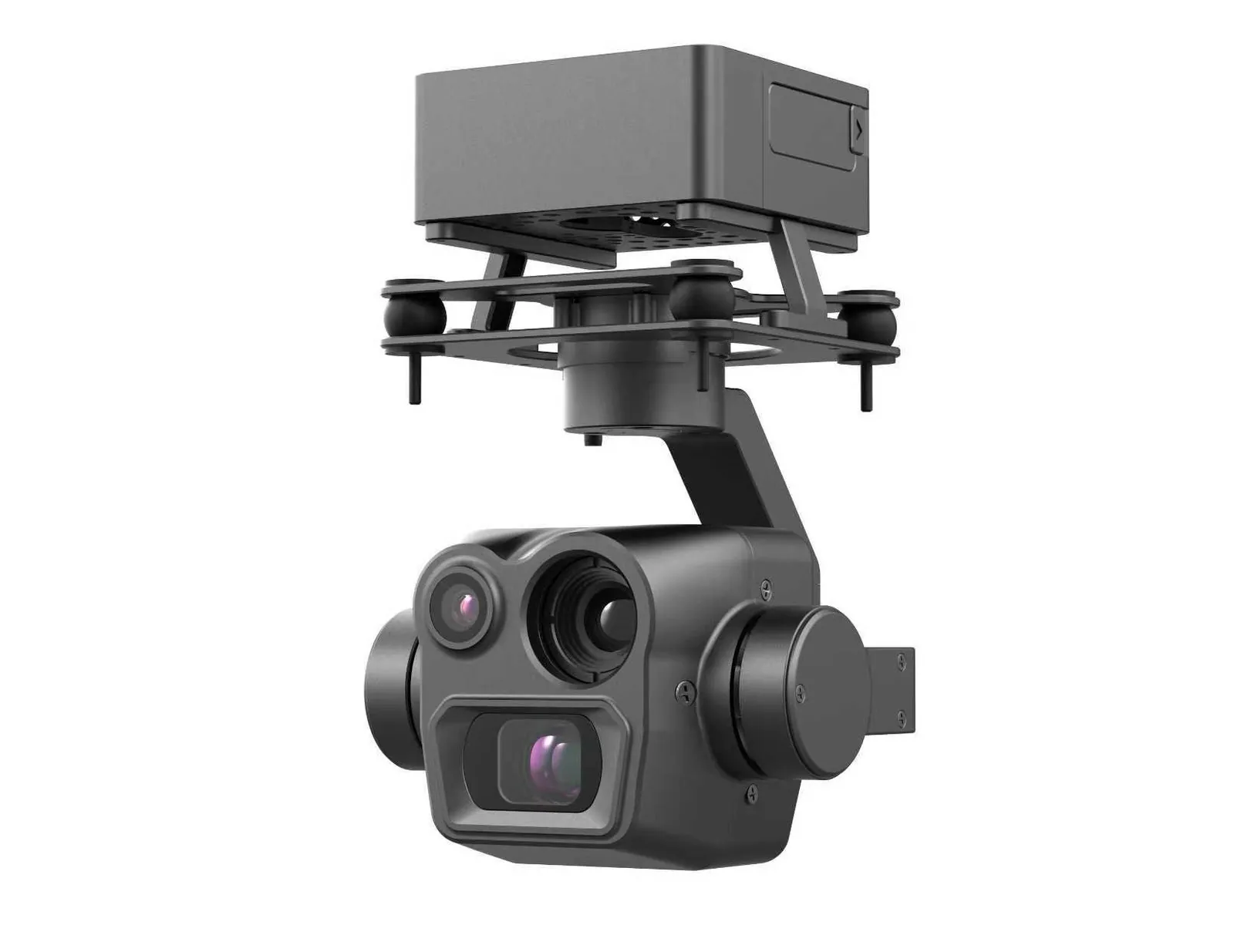

Micro 3-Axis Tri-Sensor Gimbal - PUTT215
Micro Tri-Sensor Stabilized Gimbal
View Product
Micro 3-Axis Quad-Sensor Gimbal - PUTF270
Micro Quad-Sensor Stabilized Gimbal
View Product

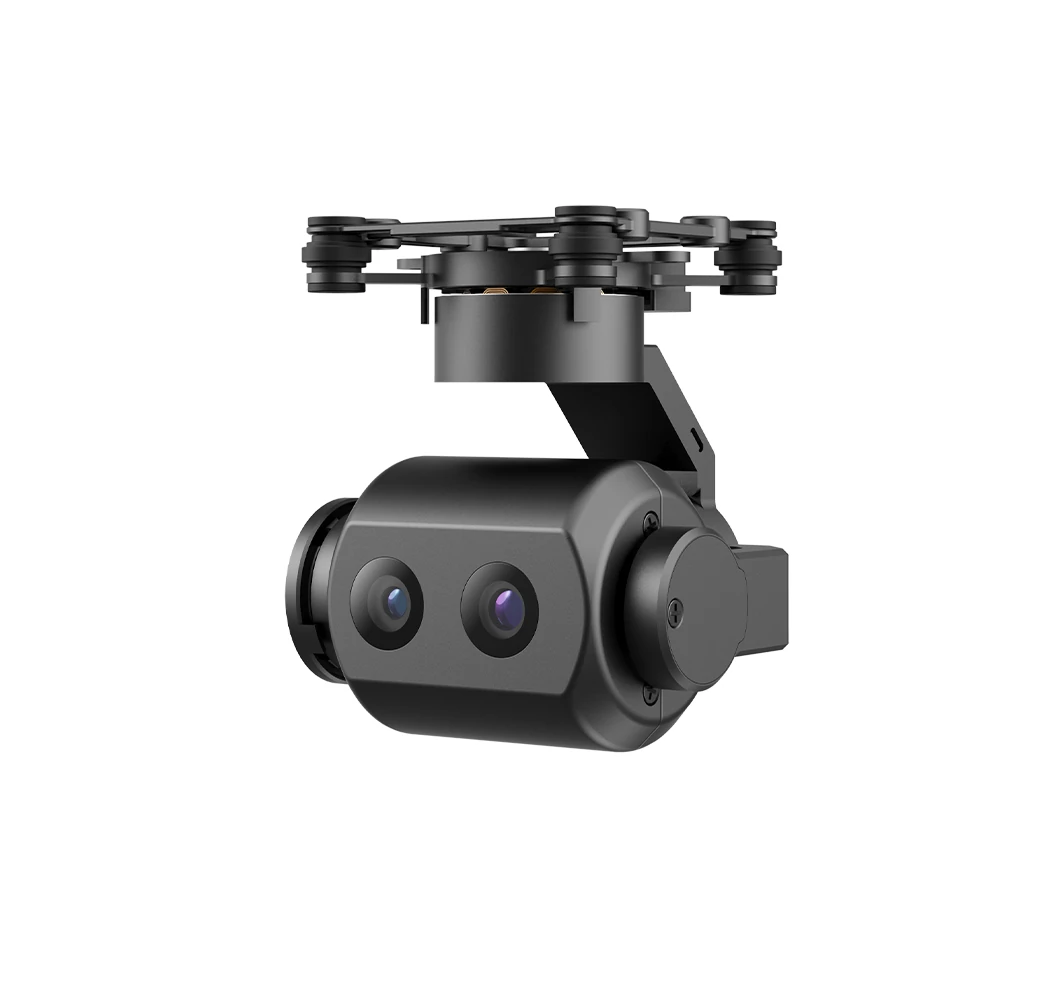

Micro Dual-Visible Gimbal - PUTD055
Micro Dual-Visible-Light Stabilized Gimbal
View Product

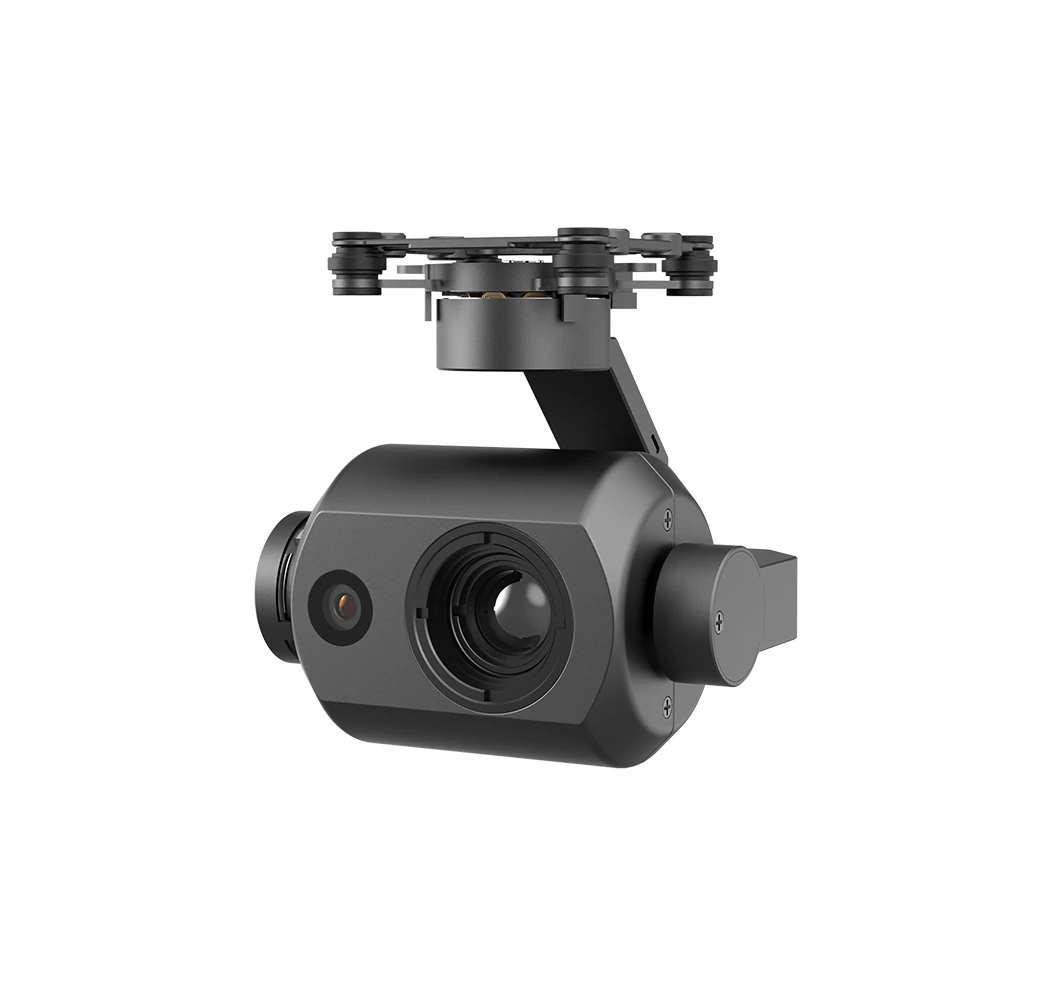

Micro Dual-Sensor Gimbal - PUTD070A
