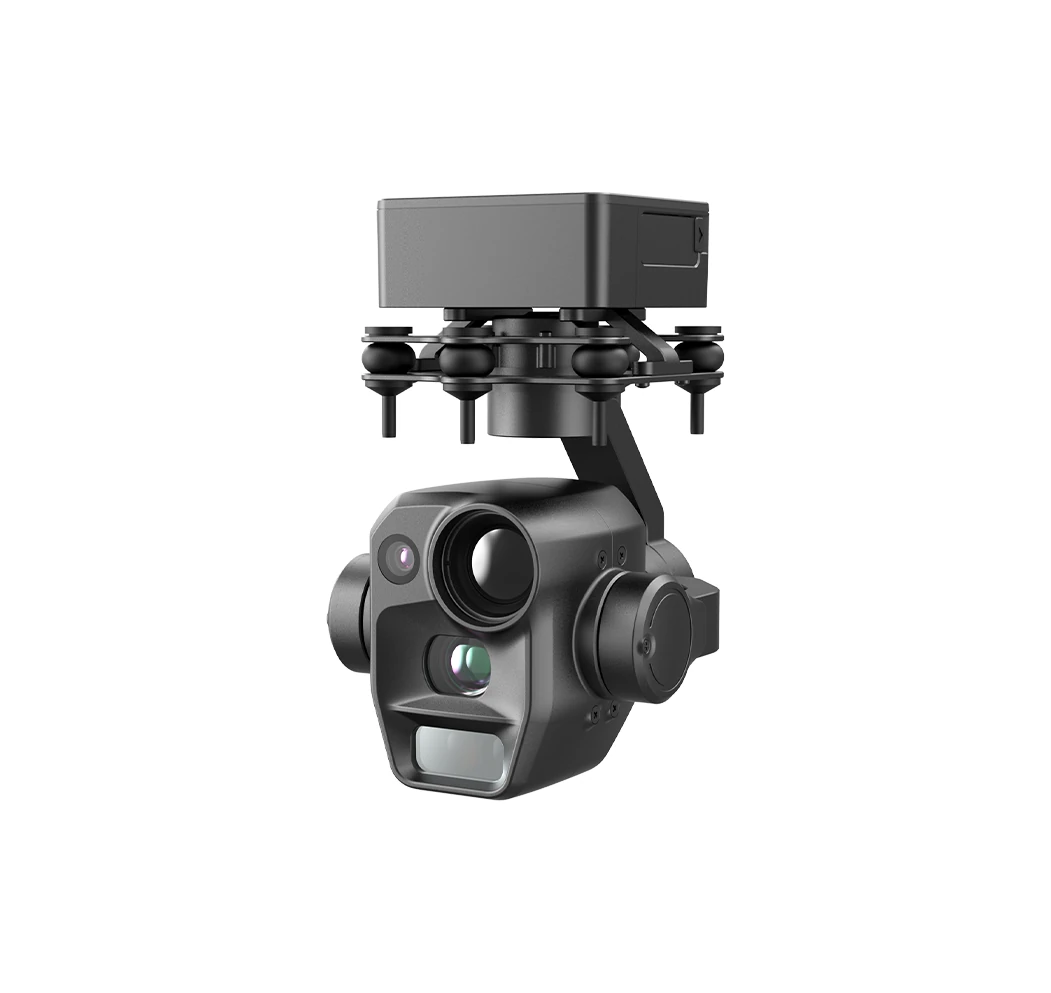

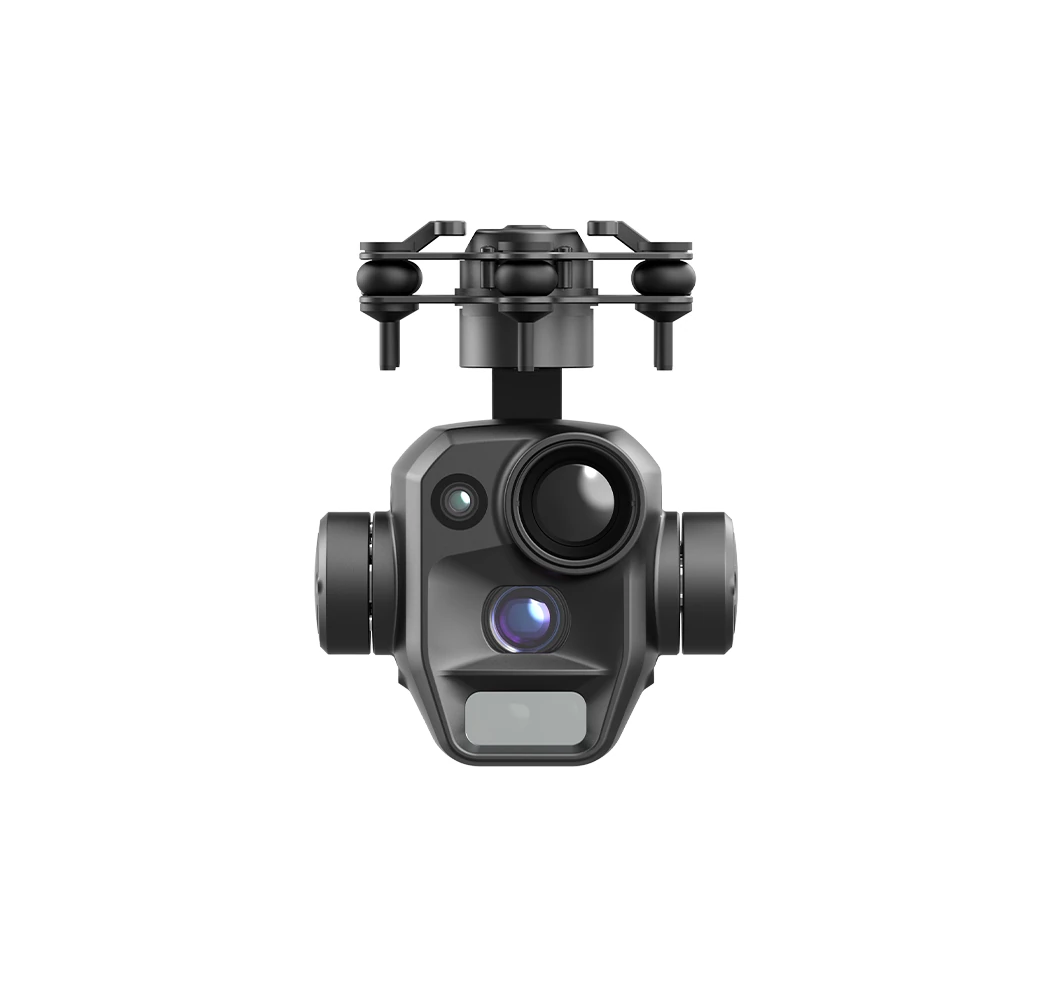

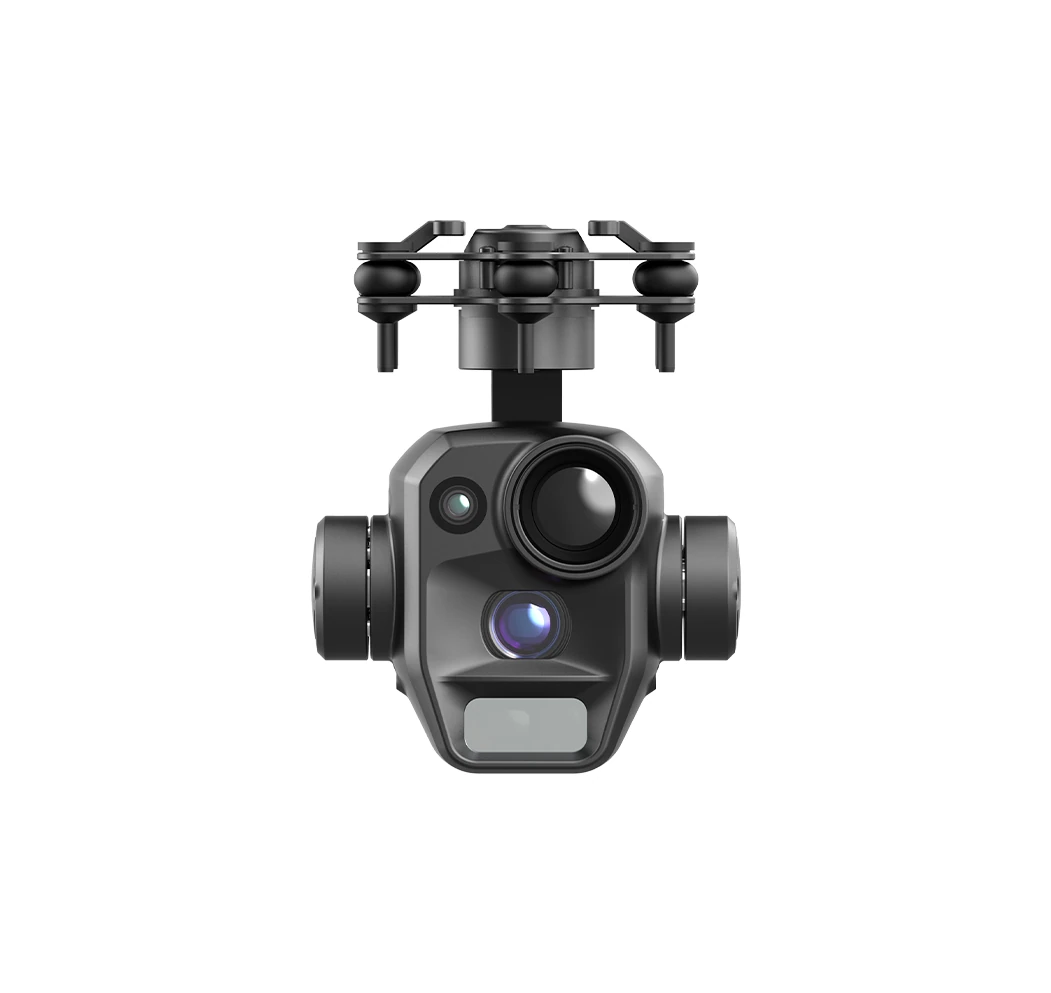

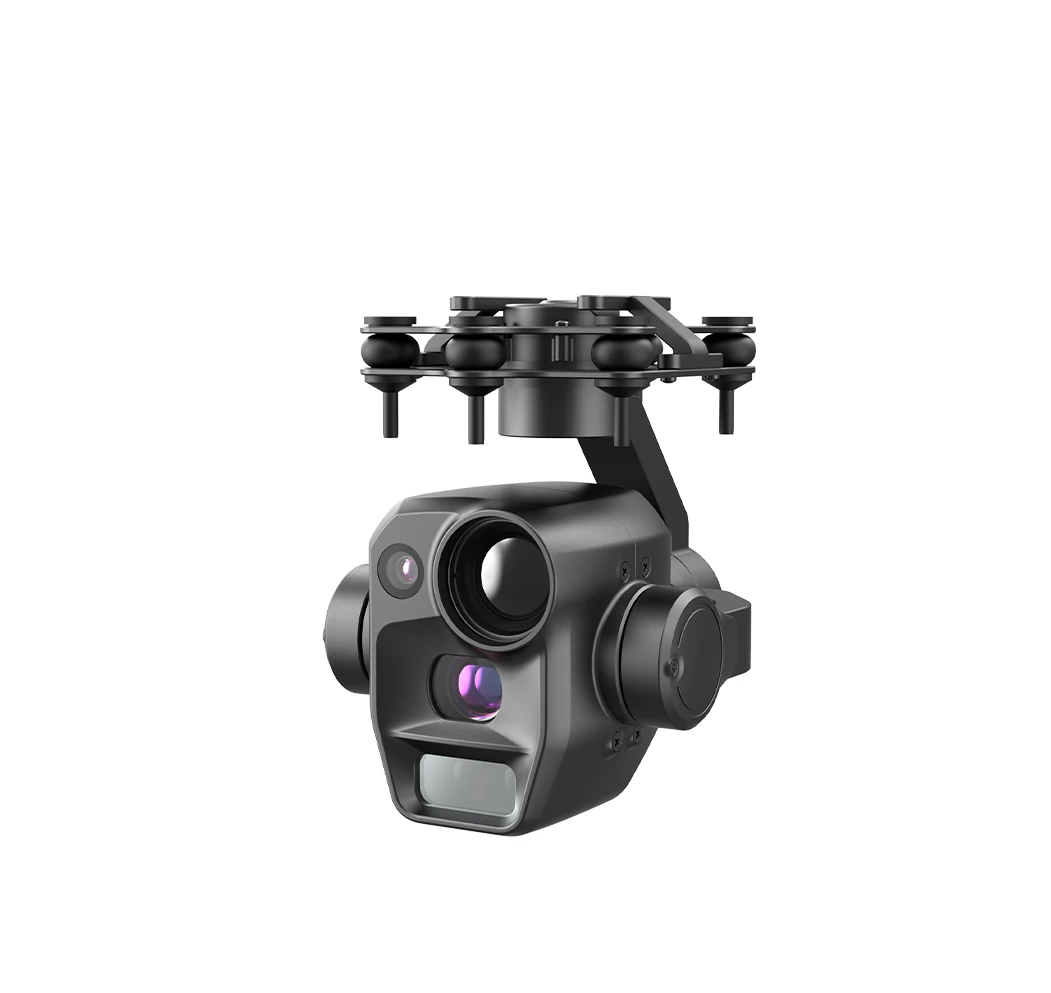

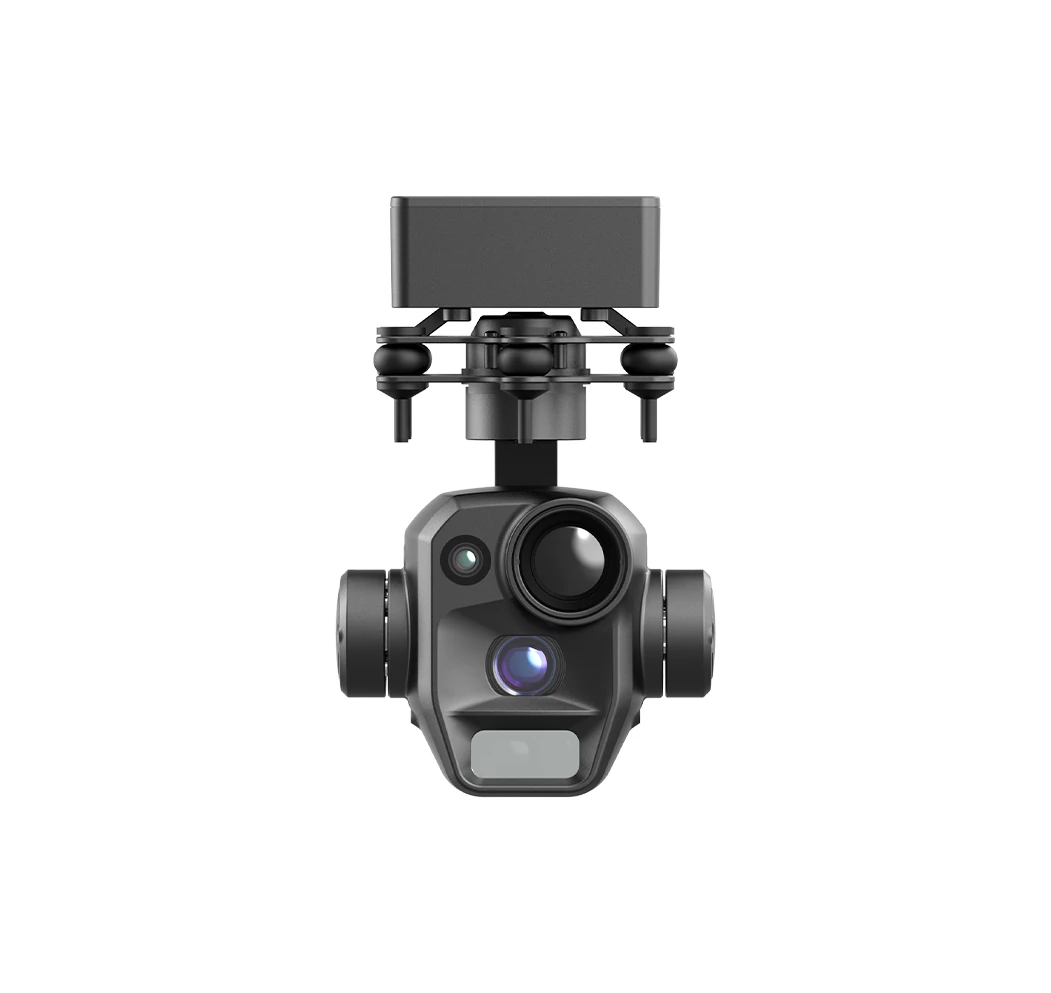

Micro 3-Axis Quad-Sensor Gimbal - PUTF270
Micro Quad-Sensor Stabilized Gimbal
The PUTF270 carries a 50MP wide camera, a 48MP zoom camera, a 25mm infrared lens and a laser rangefinder. Ranging runs from 10m to 1200m within 1m, night recognition passes 300m, and total weight stays within 322g.
Four Sensors Plus Ranging
Wide, zoom, infrared and laser channels work together on one stabilized platform.
120X Zoom, 1500m Day
Hybrid zoom reaches 120X, holding daytime recognition past 1500m.
25mm Infrared, 300m Night
A 25mm infrared telephoto lens pushes night recognition past 300m.
322g Total Weight
Total weight stays within 322g, which lifts available flight time by about 15 percent.
Applications
Technical Specifications
- Gimbal / Total Weight
- 280±5g / ≤322g
- Gimbal Dimensions
- 83 x 94 x 106 mm
- Wide Camera
- 50MP 8K, 4.7mm, 59.5° x 35.5°
- Zoom Camera
- 48MP, 120X hybrid zoom
- Thermal Camera
- 640x512, 8-14μm, 25mm telephoto
- Laser Rangefinder
- 905nm, 10-1200m, ±1m
- Daytime Recognition
- >1500m
- Night Recognition
- >300m
