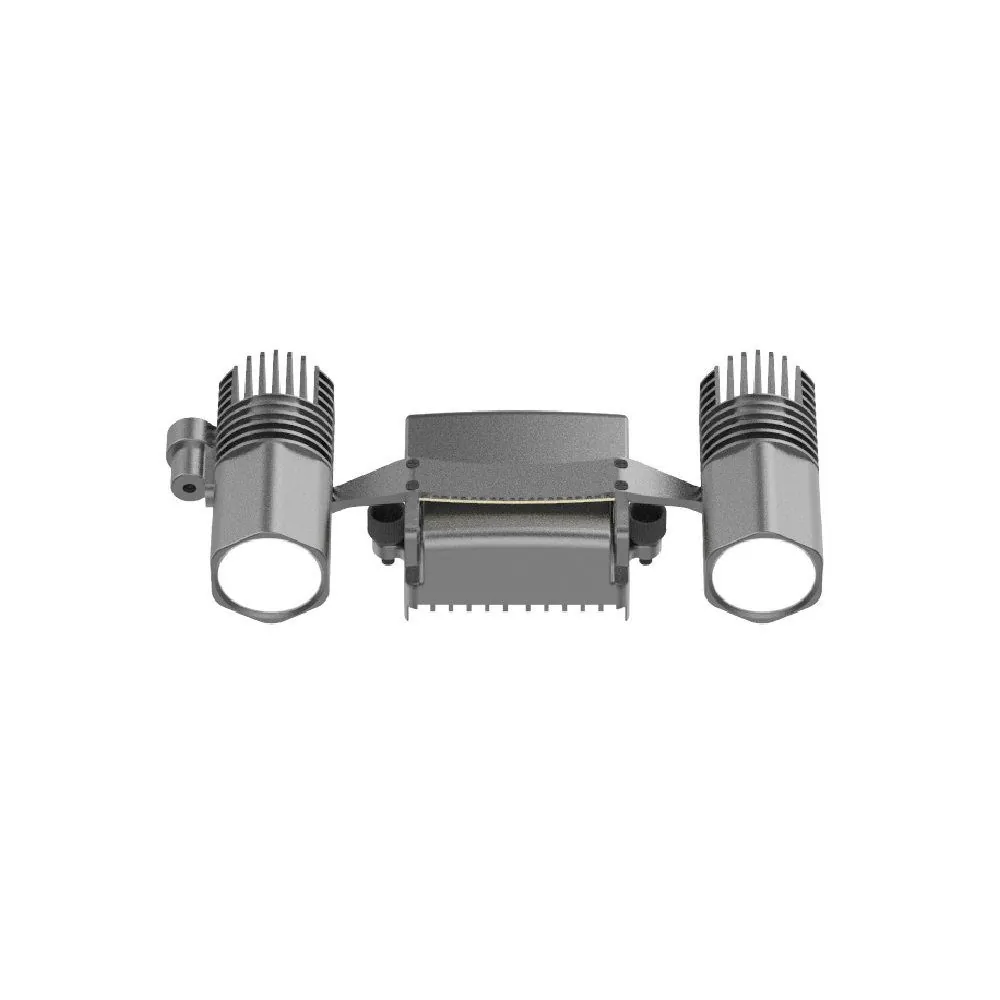

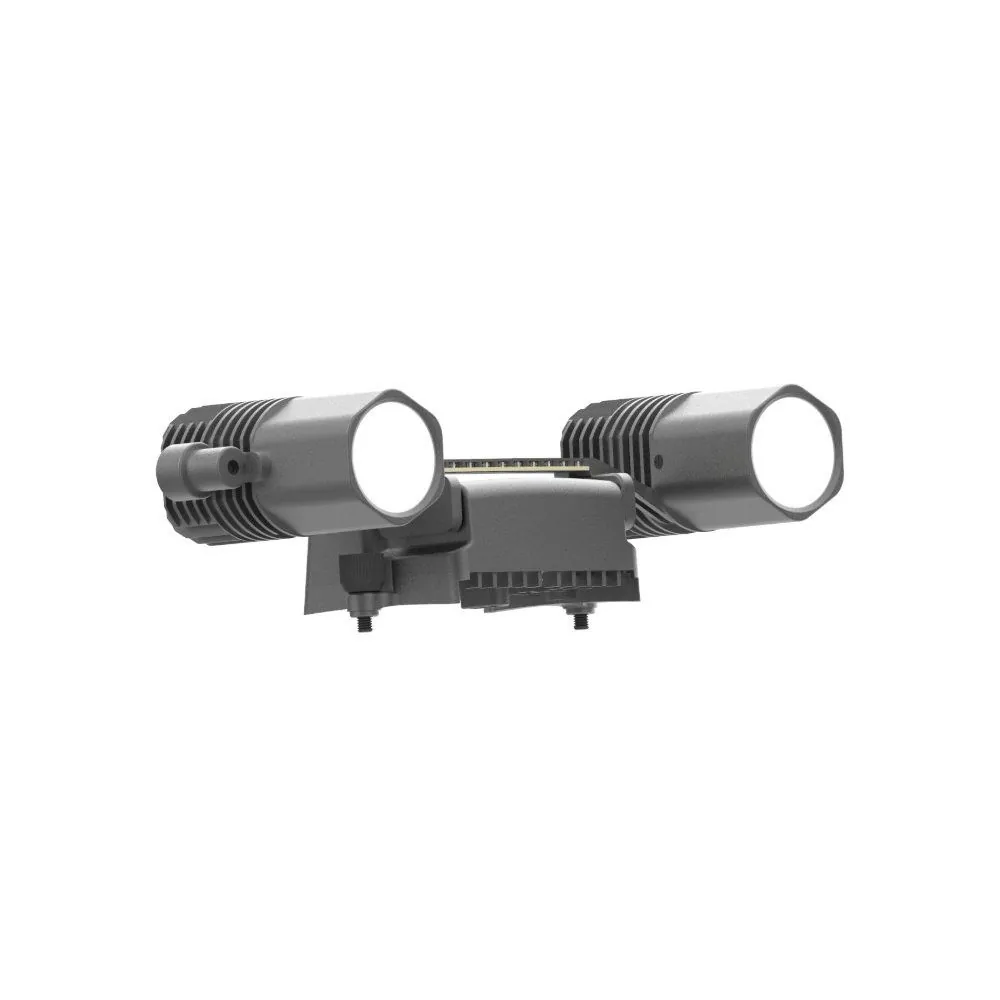

T30 V2 Searchlight
Combined Searchlight for Matrice 4

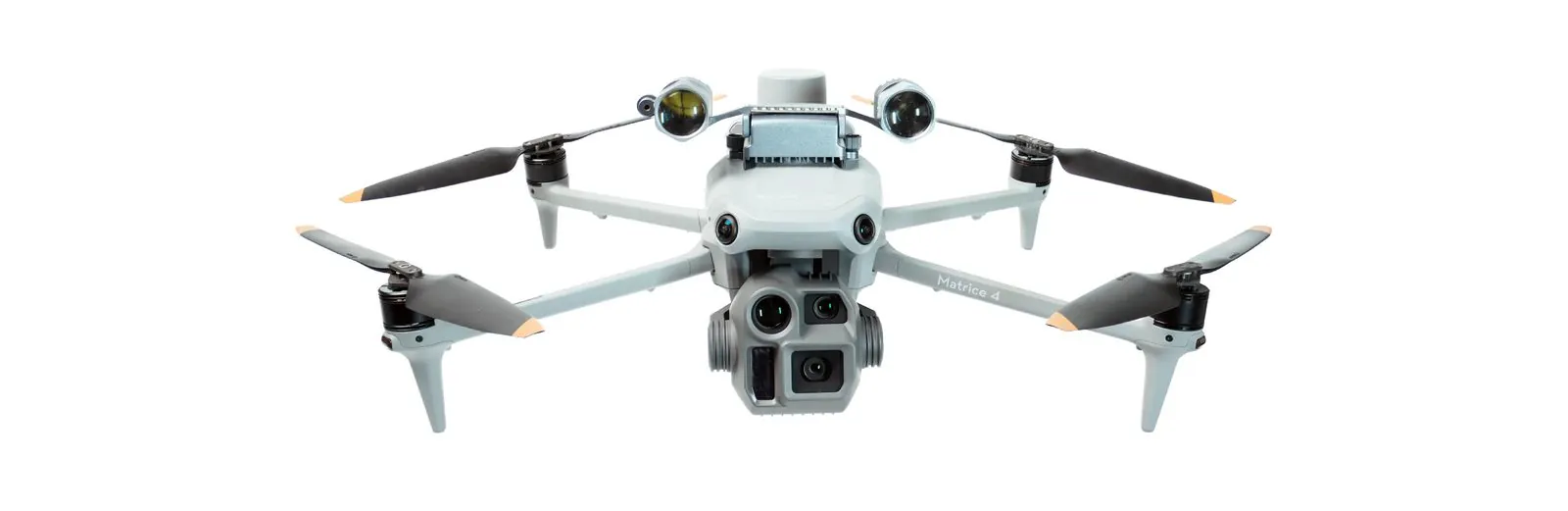

Drawing 40W and weighing 117 g, the T30 V2 uses a 14 degree spotlight that reaches 24Lux at the center from 50 m up. A single-axis stabilized gimbal links to the camera for steady aim, and DJI Pilot 2 controls the unit on DJI Matrice 4E and 4T aircraft.
One-Touch Dimming
One-touch switching with brightness adjustment for long-range lighting and search work.
Laser Center Pointer
A laser pointer marks the beam center so the illuminated spot lands where intended.
Adjustable Strobe Output
Strobe brightness and strobe rate can both be adjusted to suit the situation.
Controllable Gimbal
The controllable gimbal moves through 0 to -90 degrees and links with the aircraft camera.
Applications
Technical Specifications
- Gimbal
- Single-axis stabilizing gimbal
- IP Rating
- IP4X
- Operating Temperature
- -10°C to 50°C
- Storage Temperature
- -20°C to 60°C
- Maximum Power Consumption
- 40W
- Electrical Interface
- DJI SDK
- Compatible with
- DJl Matrice 4E、DJl Matrice 4T
- Installation Method
- Screw quick release
- Dimensions
- 143 x 43.5 x 63.5 mm
- Weight
- 117g
- Laser wavelength
- Green: 520-525nm Red: 620-625nm
- Laser Indicated Distance
- >=500m
- Illumination mode
- Combined Lighting
- Illumination Angle
- 14°
- Lighting distance
- 50m、100m、150m
- Lighting area
- 113m²、471m²、1063m²
- Center illumination
- 24Lux、5Lux、2.5Lux
