Four-Stage Audio-Visual Dropper - UT4A

Four-Stage Airdrop with Warning Light

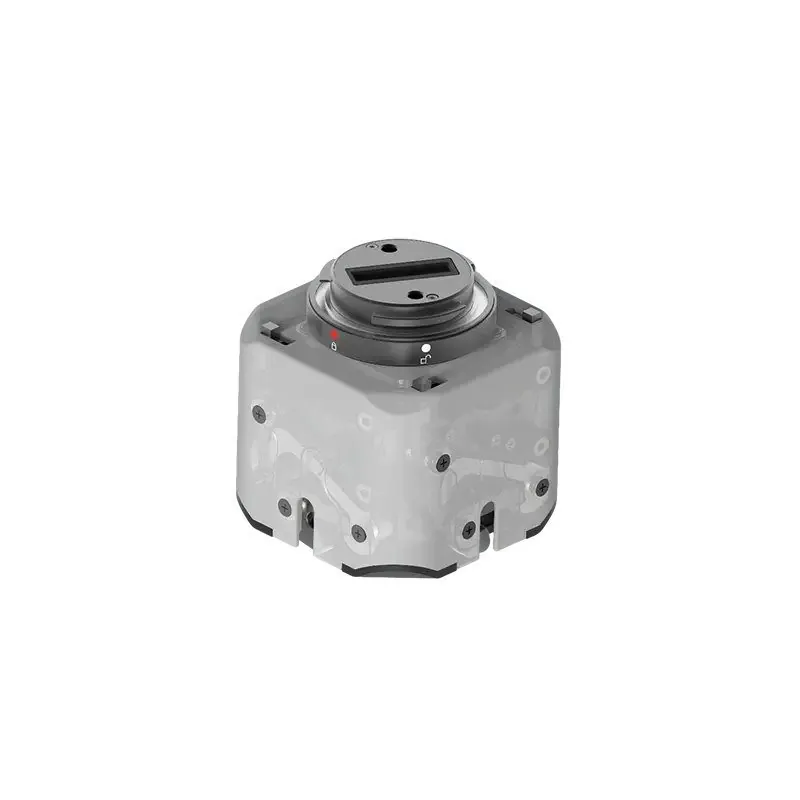

Four-Stage Audio-Visual Dropper - UT4A

The UT4A puts a high-frequency siren and RGB strobe LEDs alongside four payload slots in a 178 g body. Six alarm sounds and five strobe colors can be combined freely, DJI Pilot 2 handles remote control, and the JZ T-Port interface keeps wiring simple.

  1. Four Payload Slots

    Four mounting slots, with DJI Pilot 2 showing the load status of each one live.

  2. Siren and Strobe Combo

    A built-in siren offers six alarm sounds that pair freely with five strobe colors.

  3. Five-Color Strobe

    Strobe output covers red, green, blue, yellow and white for clear warning.

  4. 110dB Warning Siren

    The built-in siren reaches 110dB at one meter, giving audible warning below the aircraft.

Applications

Emergency Supply Drop
Emergency Supply Drop
Water Rescue
Water Rescue
Remote Area Resupply
Remote Area Resupply

Technical Specifications

IP Rating
IP4X
Operating Temperature
-10°C to 50°C
Storage Temperature
-20°C to 60°C
Maximum Power Consumption
15W
Electrical Interface
JZ T-Port
Compatible with
Matrice 400、Matrice 350 RTK
Mounted Quantity
4-stage
Placement Function
Single point delivery, one-click full projection
Installation Method
Quick-release
Operation Control
DJI Pilot 2
Dimensions
57 x 57 x59 mm
Weight
178g
Individual mounting weight
Maximum 6kg, based on actual airplane load
Total Mounted Weight
Max 20kg, actual weight of aircraft
Blink Color
Red, Green, Blue, Yellow, White
Alarm sound playback
Alarm sound playback, alarm sound mode switching
Maximum sound pressure at 1 meter
110dB

Interested in this product?

Talk to our team about your drone payload requirements.
