Heavy-Lift 13-Inch FPV Platform

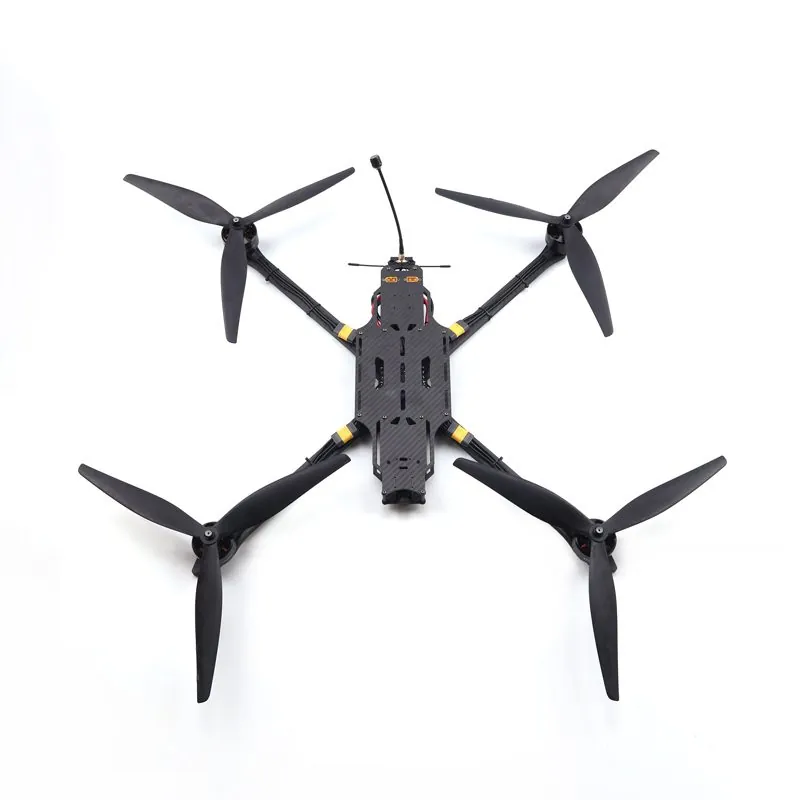

A 13-inch heavy-lift FPV airframe with a 700 mm True X T300/T700 carbon frame. It lifts 5-6kg, flies 30 minutes empty and 8 to 10 minutes loaded, and keeps a stable 3W video and ELRS control link out to 10 km or 5000 m altitude.
Useful payload reaches 5-6kg, so heavier cargo can be carried.
Control and video stay linked out to 10 km from the pilot.
Top speed reaches 130km/h even with the larger airframe and props.
Maximum flight altitude reaches 5000m, covering high plateau and mountain work.

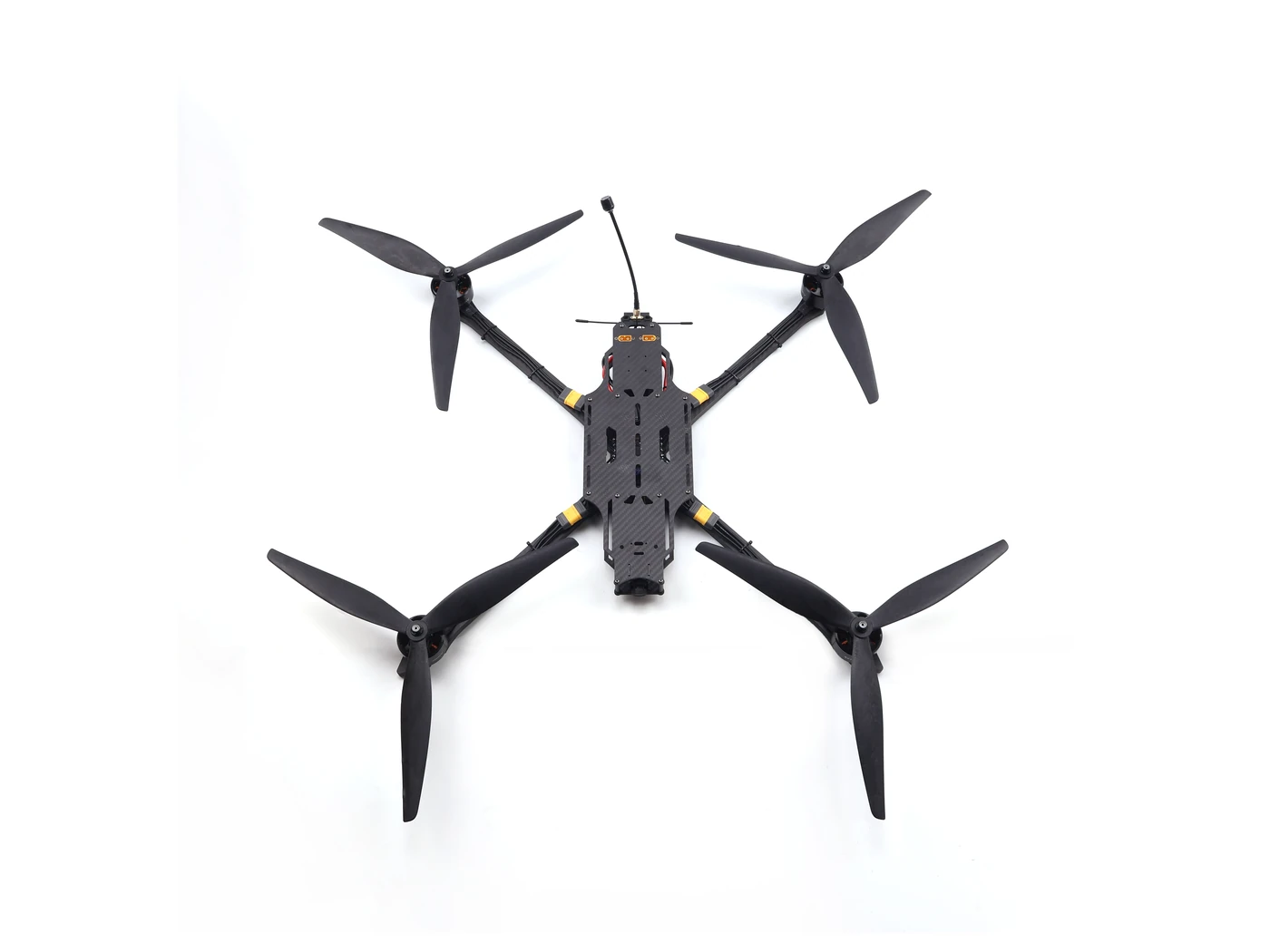

A True X layout with a 700mm wheelbase, built from 3mm T300/T700 carbon fibre plates top and bottom, 10mm arms and a 20mm electronics layer. Arm assembly measures 520×520×25mm. Stack mounting holes are M3×30.5mm, video transmitter holes M2×20/25.5mm and M3×30.5mm, and motor mounts M4×30mm.

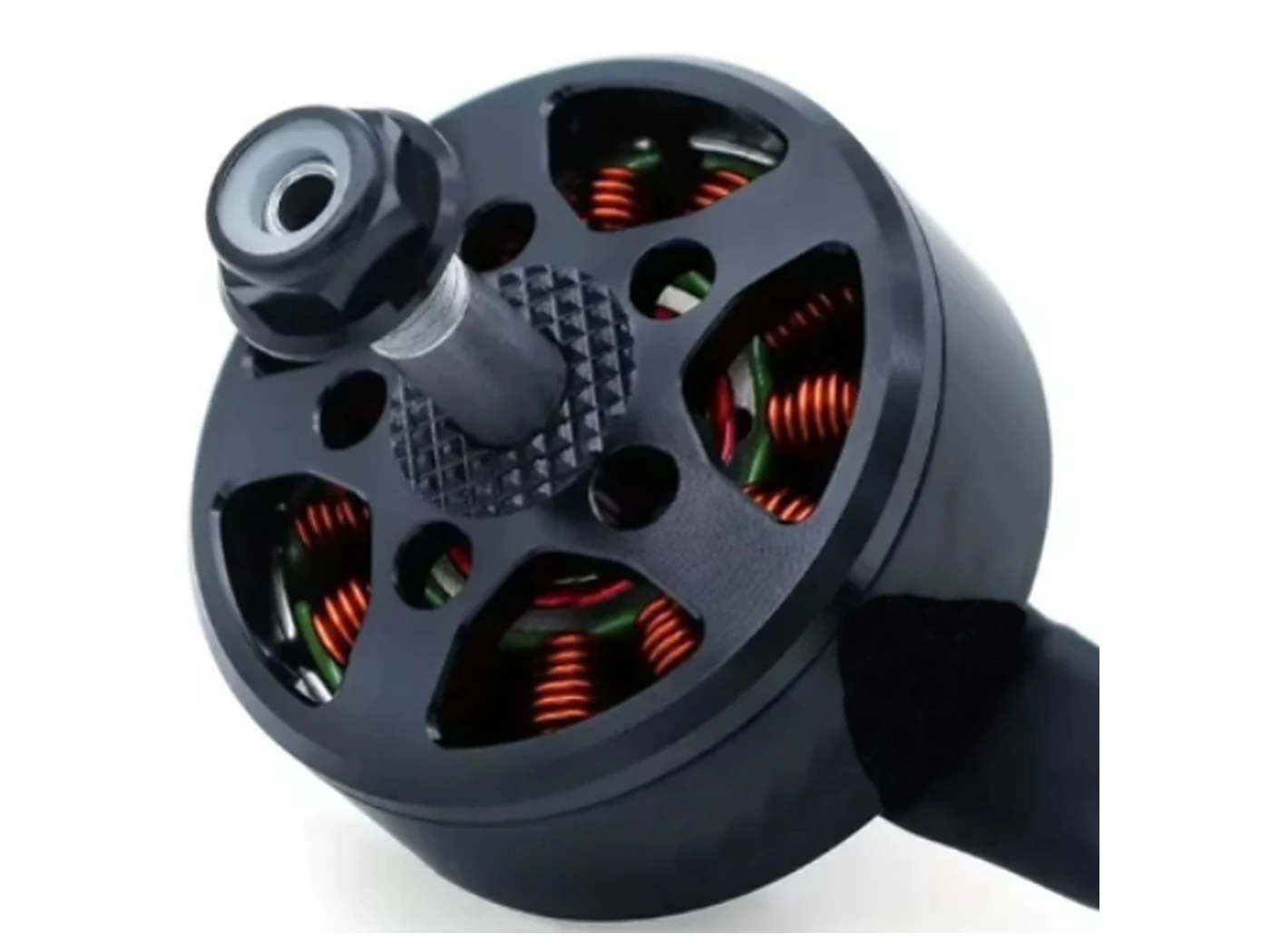

4214 brushless motors rated 380KV on 6-8S, each producing up to 4850g of thrust — about 19.4kg of total lift. Maximum current 60A, maximum power 1760W, no-load current 2.8A/20V, phase resistance 48mΩ, motor weight 246g at Ф49×32.5mm, paired with 13×8×3 tri-blade glass-fibre nylon propellers. The complete aircraft carries 5-6kg of payload, flying 8-10 minutes loaded and 30 minutes unloaded, with a top speed of 130km/h and a 5000m ceiling.

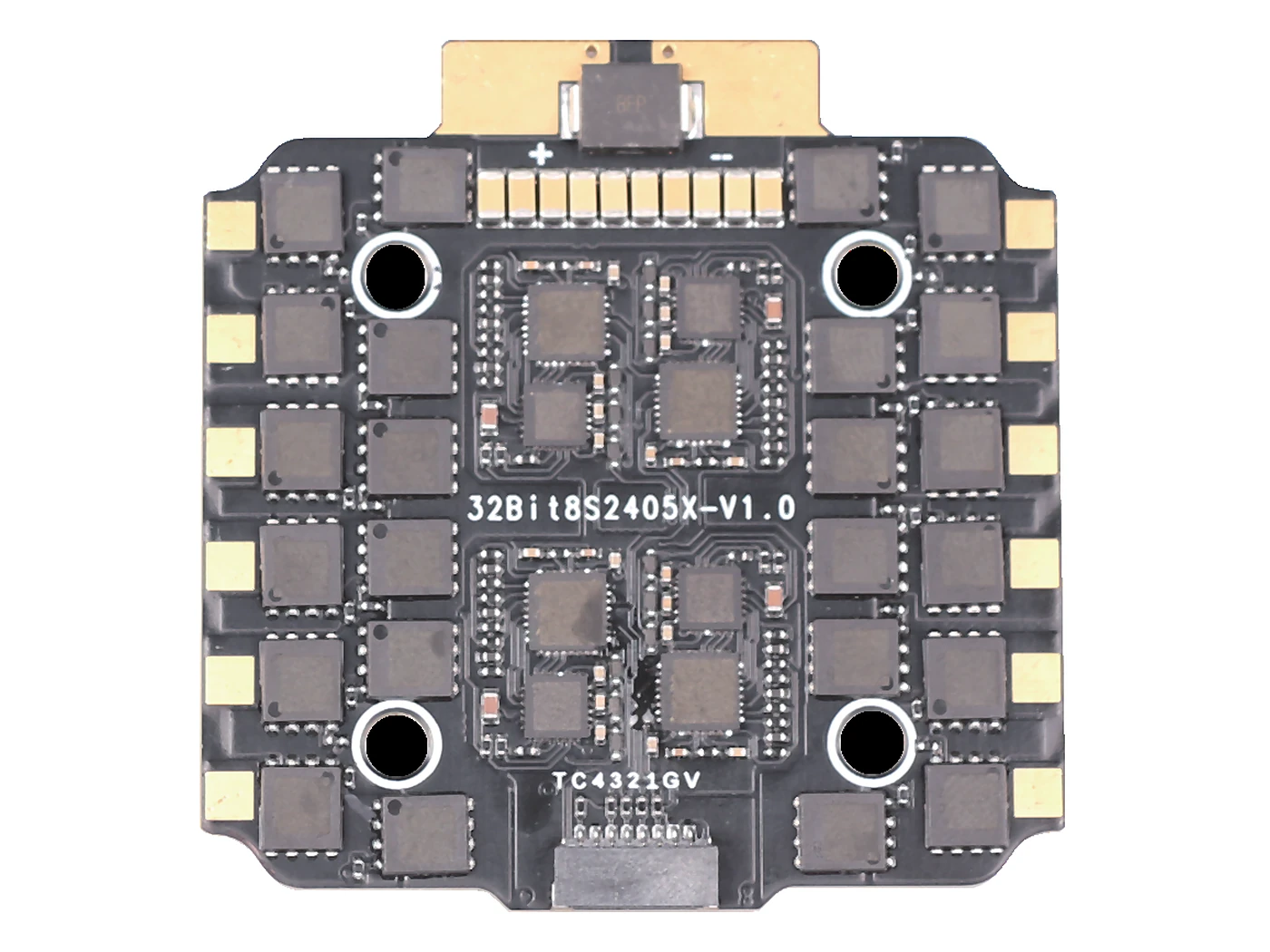

The F405 flight controller runs an STM32F405 MCU with an ICM42688-P gyro, 16MB onboard blackbox and AT7456 OSD, on Betaflight firmware with six serial ports. It measures 40.6×40.6×9.8mm at 19.6g. The 80A 8S ESC handles 80A continuous and 100A burst, accepts 8S input, and measures 56.2×57mm at 28g.
The 5.8G video transmitter runs 3W across 40 channels on the IRC protocol, with an MMCX antenna connector, measuring 54×28×13mm at 32.5g. The B19 camera delivers 1500TVL from a 1/3-inch CMOS sensor with a 2.1mm lens, 0.001Lux minimum illumination, D-WDR and 3DNR, powered from DC 5V-30V. The control link uses an ELRS 915MHz receiver on CRSF, with telemetry output below 17dBm and WIFI firmware updates.
