Professional FPV Quadcopter
This 10-inch FPV airframe carries a 3kg payload at up to 150km/h, with video and control out to 10km. Flight time runs 30 minutes empty, so the airframe suits both industrial work and cinematic filming.
Safely carries payloads between 2.5kg and 3kg, which suits professional cinema rigs or heavy material transport.
An ELRS 915MHz link and a 3W 5.8G transmitter hold control and video out to 10km.
Top speed reaches 150km/h, which gives quick transit and keeps pace with fast-moving subjects.
Flight time reaches 30 minutes empty and holds 8 to 12 minutes with a full payload.

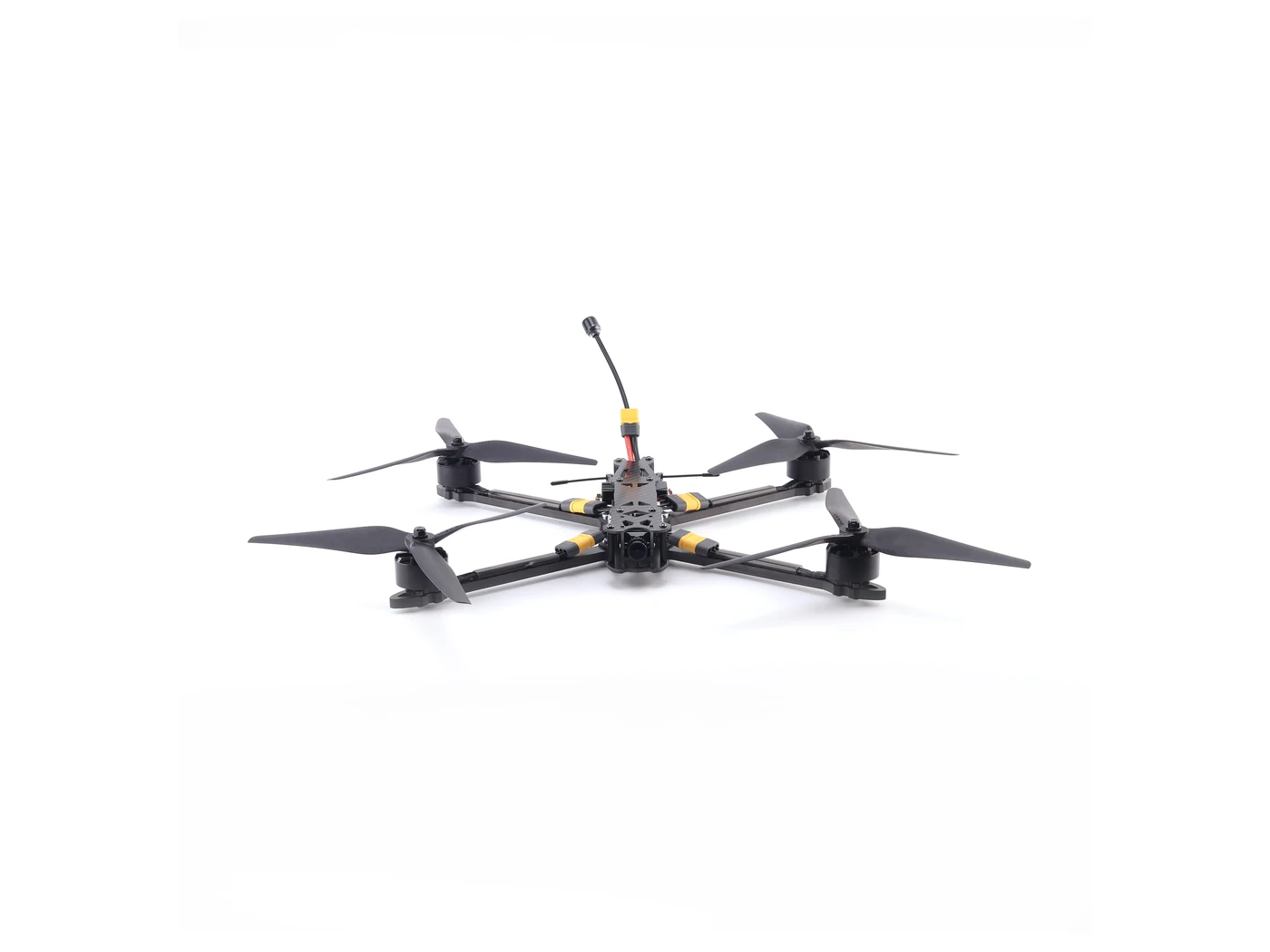

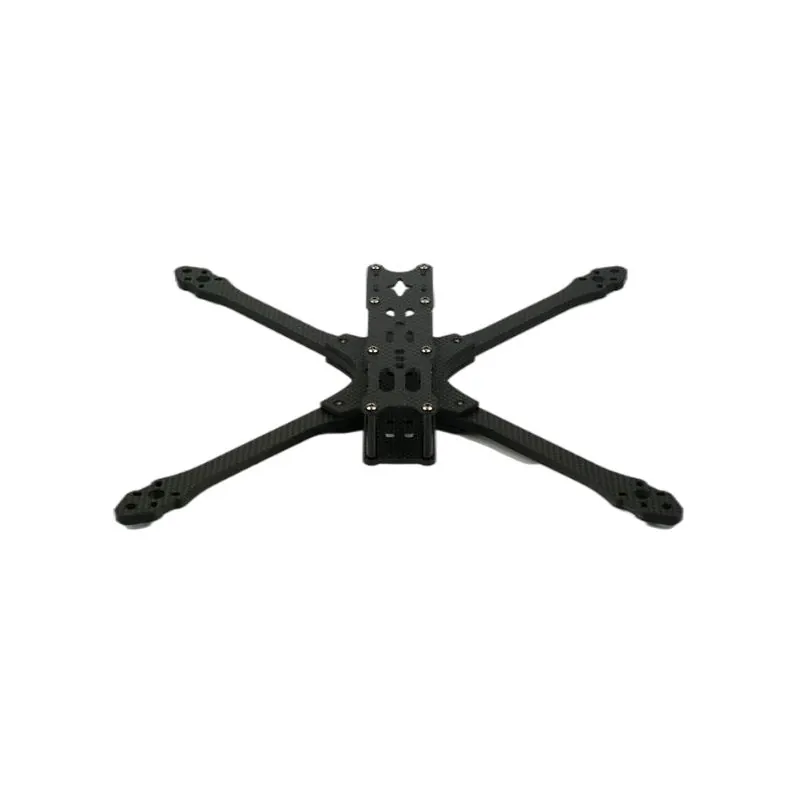

The Mark 4 frame uses T300/T700 carbon fibre plates, 3mm top and 2mm bottom, with 7mm arms. A 427mm wheelbase and 25mm stack height leave room for 10-inch propellers. The bottom plate measures 223×108mm, camera spacing 20mm and stack mounting holes M3×30.5mm.

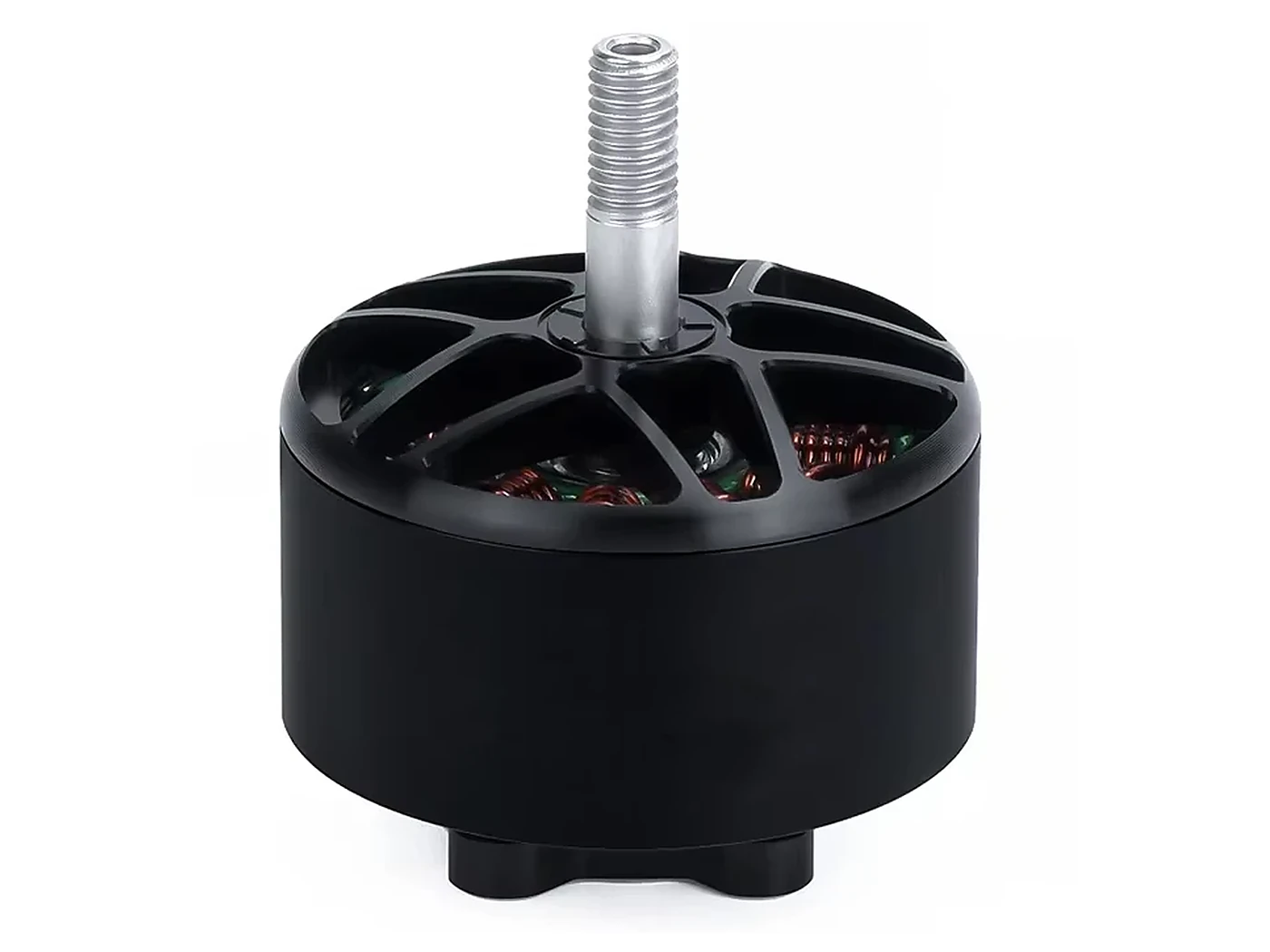

3115 brushless motors rated 900KV on 3-6S, each producing up to 4185g of thrust — close to 16.7kg of total lift across four arms. Maximum current 64.7A, maximum power 1617W, motor weight 112.3g, measuring Ф37.1×32.1mm, paired with 1050 tri-blade glass-fibre nylon propellers. The complete aircraft carries 2.5-3kg of payload, flying 8-12 minutes loaded and 30 minutes unloaded, with a top speed of 150km/h and a 6000m ceiling.

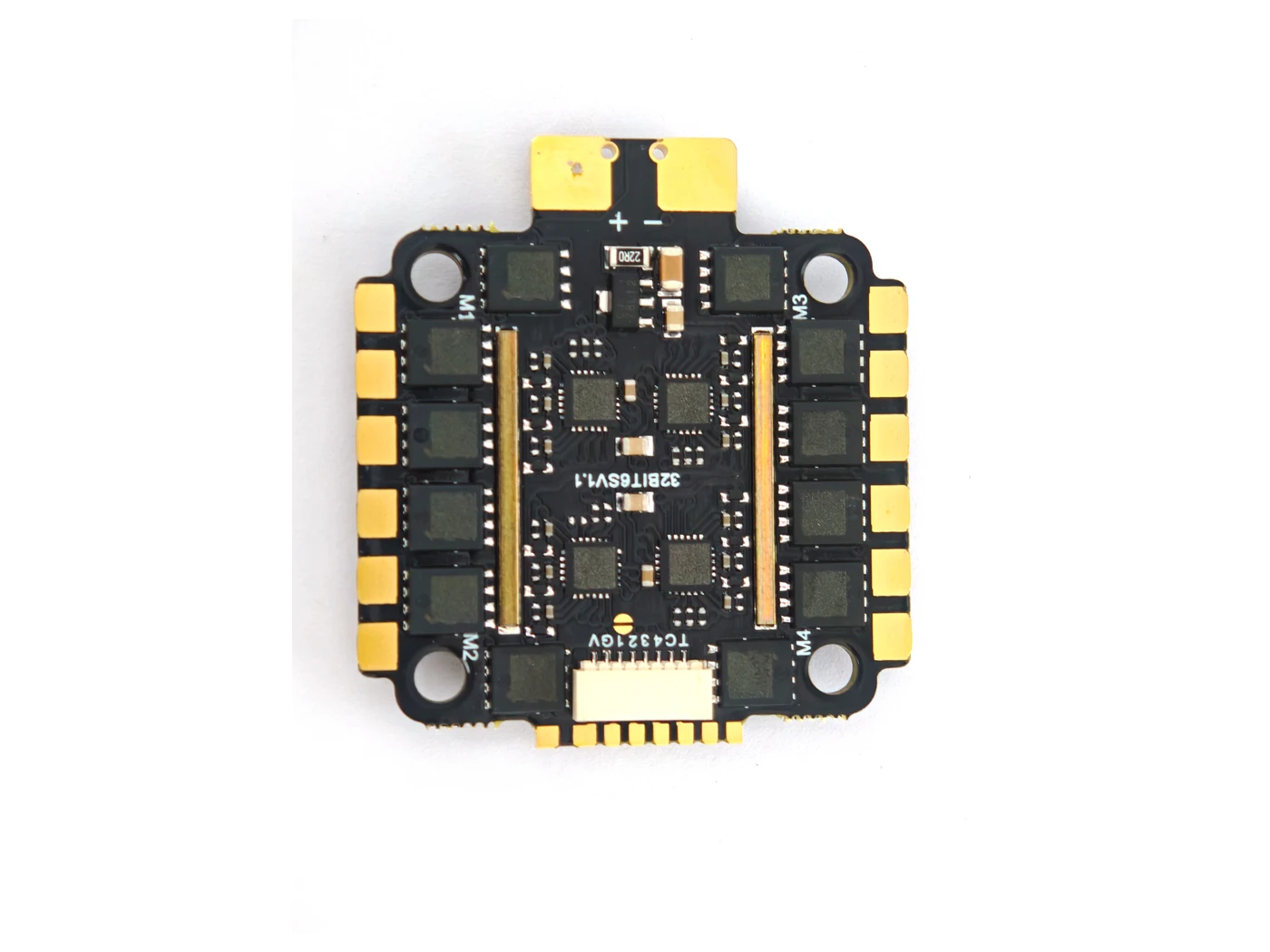

The F405 flight controller uses a 36×36mm board with M3×30.5mm mounting holes and supplies regulated 9V and 5V rails so the camera, video transmitter and receiver draw power independently. The 60A-6S ESC (X82311X) handles 60A continuous and 70A burst for 10 seconds, supports 3-6S packs, carries an onboard current sensor, and measures 44.5×39mm at 21.5g.
The 4.9/5.8G video transmitter runs 3W across 40 channels on the IRC protocol, with an MMCX antenna connector, measuring 54×28×13mm at 32.5g. The B19 camera delivers 1500TVL from a 1/3-inch CMOS sensor with a 2.1mm lens, 0.001Lux minimum illumination, D-WDR and 3DNR. The control link uses an ELRS 915MHz receiver on CRSF, with telemetry output below 17dBm and WIFI firmware updates.
