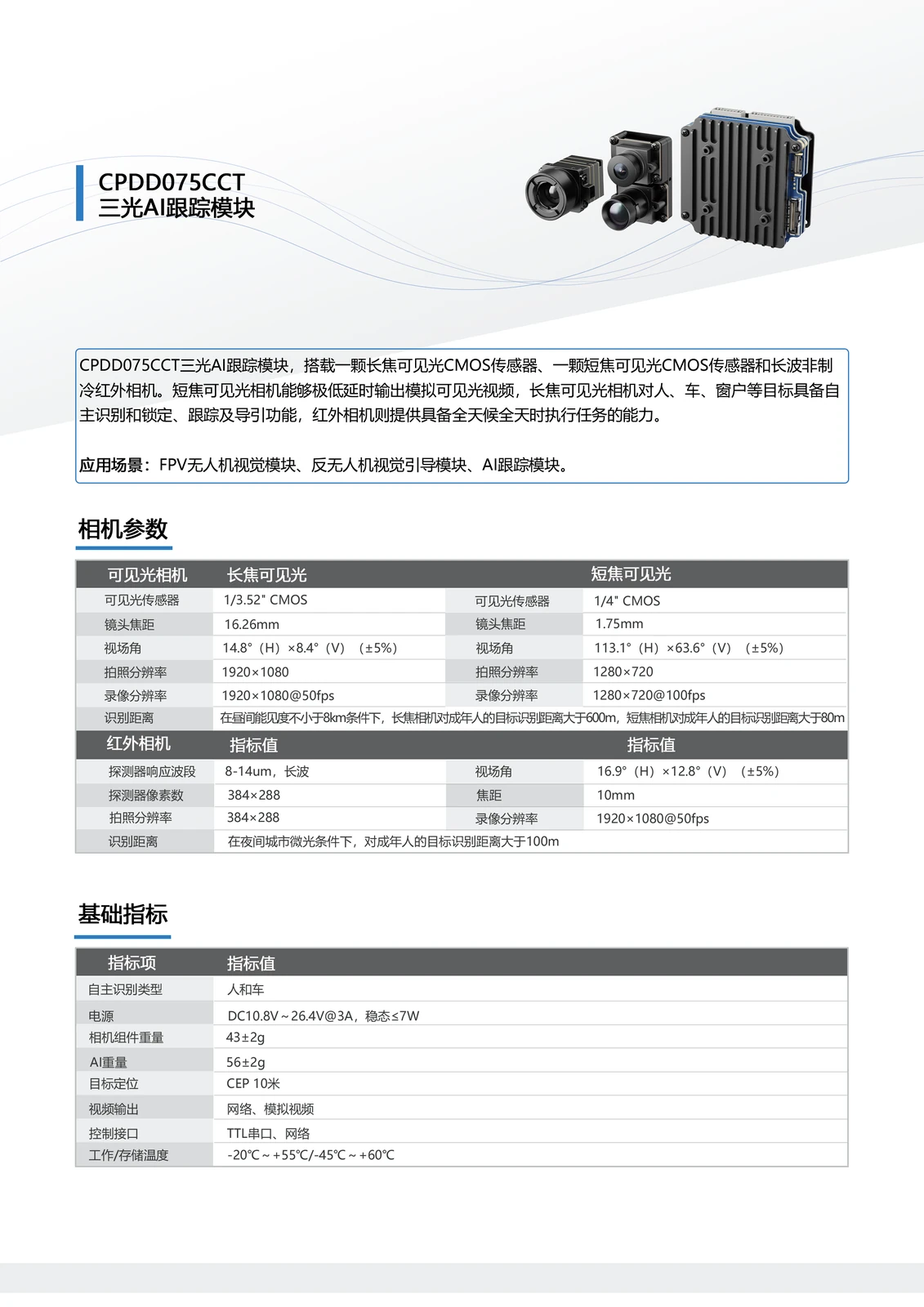

Tri-Sensor Tracking Module - PUDD075CCT
Tri-Sensor AI Tracking Module
The PUDD075CCT combines a 16.26mm telephoto camera, a 1.75mm wide camera and a 384 x 288 infrared sensor. The wide channel searches, the telephoto channel holds detail, the infrared channel works after dark, and the module weighs 43g.
Telephoto, Wide and Infrared
Three channels cover long reach, wide search and night work in one module.
Wide Search, Far Tracking
The wide camera finds the subject and the telephoto camera then holds it.
384 x 288 Night Channel
The infrared channel keeps the subject visible after dark and in weak light.
43g Lightweight Module
Three sensors and the tracker together weigh 43g, which suits light payloads.
Applications
Technical Specifications
- Operating / Storage Temperature
- -20℃ ~ +55℃ / -45℃ ~ +60℃
- Power Supply
- DC 10.8–26.4 V @ 3 A, steady state ≤7 W
- Control Interface
- TTL serial, network
- Telephoto Visible Sensor
- 1/3.52" CMOS
- Telephoto Focal Length
- 16.26 mm
- Telephoto Field of View
- 14.8° (H) × 8.4° (V) (±5%)
- Telephoto Photo Resolution
- 1920 × 1080
- Telephoto Video Resolution
- 1920 × 1080 @ 50fps
- Wide-Angle Visible Sensor
- 1/4" CMOS
- Wide-Angle Focal Length
- 1.75 mm
- Wide-Angle Photo Resolution
- 1280 × 720
- Wide-Angle Video Resolution
- 1280 × 720 @ 100fps
- Thermal Detector
- 8–14 μm long-wave uncooled
- Thermal Resolution
- 384 × 288
- Thermal Focal Length
- 10 mm
- Thermal Field of View
- 16.9° (H) × 12.8° (V) (±5%)
- Thermal Photo Resolution
- 384 × 288
- Thermal Video Resolution
- 1920 × 1080 @ 50fps
- Thermal Recognition Range
- Over 100 m for an adult target in low-light urban conditions at night
- AI Functions
- Autonomous recognition, locking, tracking
- Camera Module Weight
- 43 g ± 2 g
- Video Output
- Network, analog video
- AI Module Weight
- 56 g ± 2 g
- Dimensions
- 26 x 28 x 38 mm / 30 x 34 x 21.5 mm
- Wide-Angle Field of View
- 113.1° (H) × 63.6° (V) (±5%)
- Recognition Range
- With daytime visibility of at least 8 km: over 600 m on the telephoto channel and over 80 m on the wide-angle channel for an adult target
- Recognition Targets
- Person, vehicle
- Target Geolocation
- CEP 10 m
