Dual-Sensor Tracking Module - PUDD075CLT

Name: Dual-Sensor Tracking Module - PUDD075CLT
Brand: Puyu Drone
Availability: PreOrder

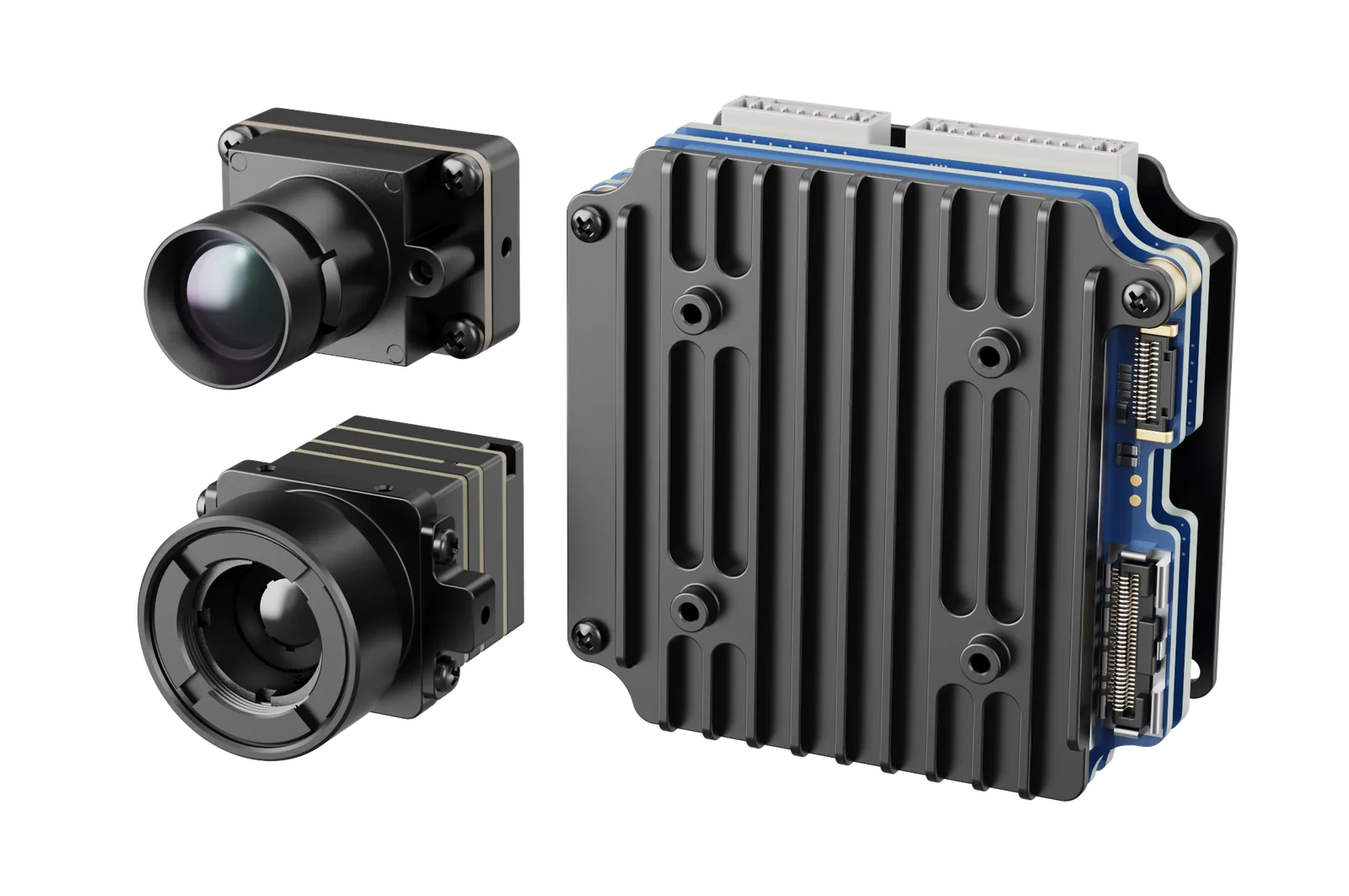

Dual-Sensor AI Tracking Module

The PUDD075CLT pairs a 16.26mm telephoto visible camera with a 384 x 288 long-wave infrared sensor. Day and night channels share one AI tracker, so a target stays locked through darkness, and the module weighs 35g.

16.26mm Telephoto Capture
A 16.26mm visible lens pulls in distant detail that wide lenses miss.
384 x 288 Night Tracking
The infrared channel keeps tracking after dark and in weak light.
Dual-Sensor AI Recognition
Both channels feed one tracker, so recognition holds as light levels change.
35g Lightweight Module
The whole module weighs 35g, which suits micro drones and small gimbals.

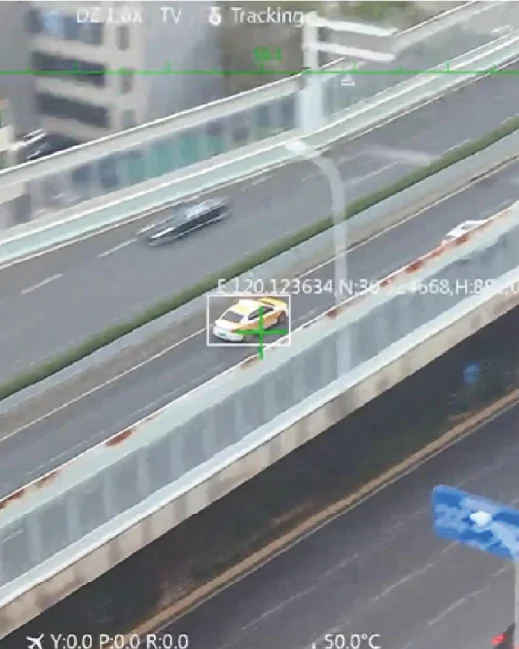

Applications

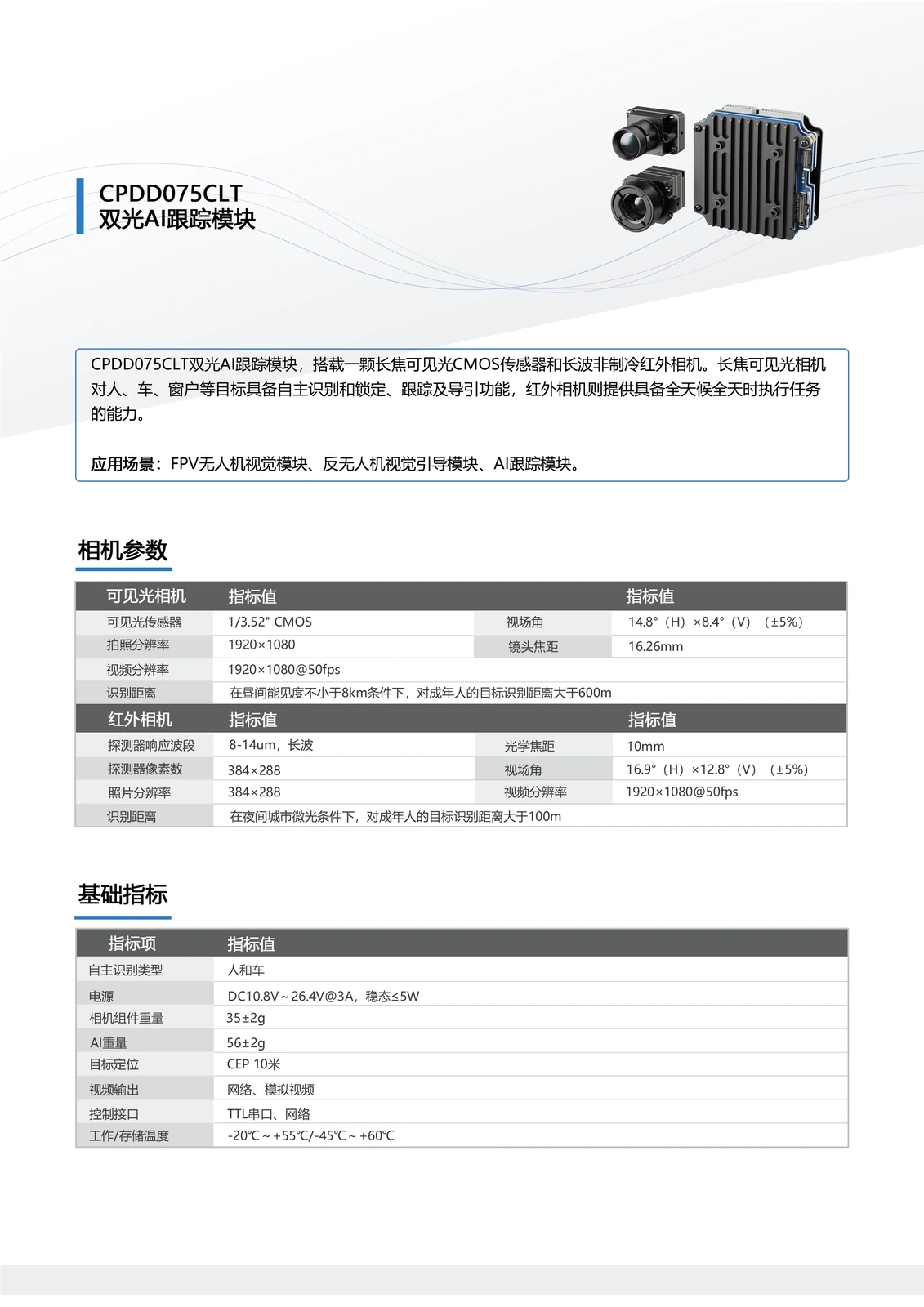

Technical Specifications

Operating / Storage Temperature: -20℃ ~ +55℃ / -45℃ ~ +60℃
Power Supply: DC 10.8–26.4 V @ 3 A, steady state ≤5 W
Control Interface: TTL serial, network
Visible Sensor: 1/3.52" CMOS
Focal Length: 16.26 mm
Photo Resolution: 1920 × 1080
Video Resolution: 1920 × 1080 @ 50fps
Thermal Detector: 8–14 μm long-wave uncooled
Thermal Resolution: 384 × 288
Thermal Focal Length: 10 mm
Thermal Field of View: 16.9° (H) × 12.8° (V) (±5%)
Thermal Photo Resolution: 384 × 288
Thermal Video Resolution: 1920 × 1080 @ 50fps
Thermal Recognition Range: Over 100 m for an adult target in low-light urban conditions at night
AI Functions: Autonomous recognition, locking, tracking
Camera Module Weight: 35 g ± 2 g
Video Output: Network, analog video
AI Module Weight: 56 g ± 2 g
Dimensions: 26 x 29 x 18 mm / 30 x 34 x 21.5 mm
Recognition Range: Over 600 m for an adult target with daytime visibility of at least 8 km
Recognition Targets: Person, vehicle
Field of View: 14.8° (H) × 8.4° (V) (±5%)
Target Geolocation: CEP 10 m
